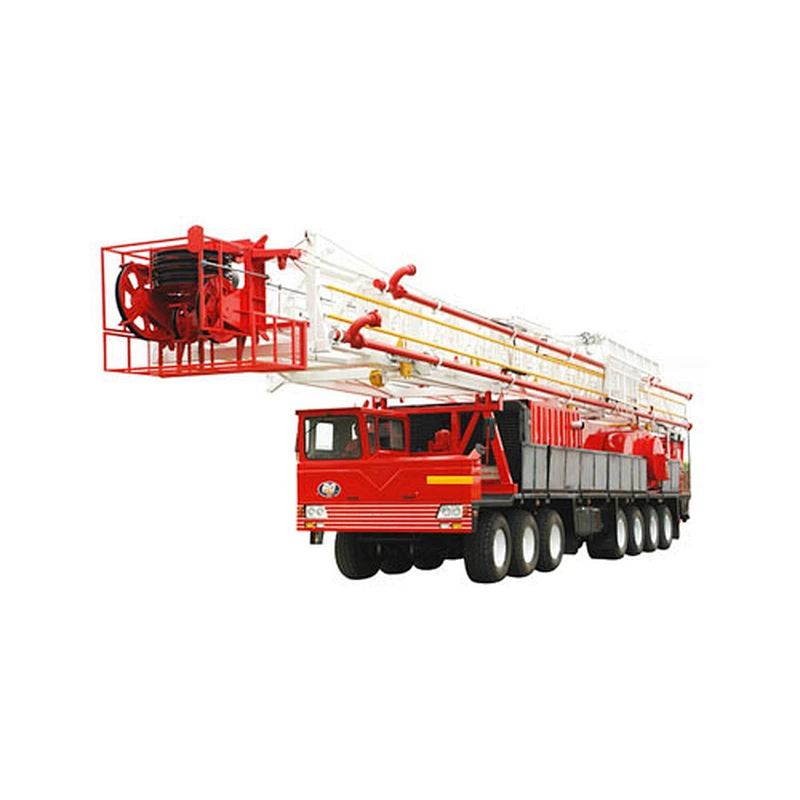

Mobile drilling rig model ZJ30/1800Z

Model

ZJ15/1350Z

Maximum hook load (kN)

1700(1800)

Nominal drilling depth（114mm）m

1600～3000

Winch power (kW)

403x2

rigging

8,10

Rope diameter (mm)

32

Tower height (m)

36,38,41

Maximum hook lifting speed (m/s)

1.5

Rotor Base Height(m)

6, 7, 7.5

Rotor bore diameter(mm)

520.7 698.5

Main brake

Band and disc brake

Auxiliary brake

324WCB

Chassis model

XD70/14×8

Minimum distance to ground (mm)

311

Minimum turning circle diameter (m)

41

Emission standard

V (international)
