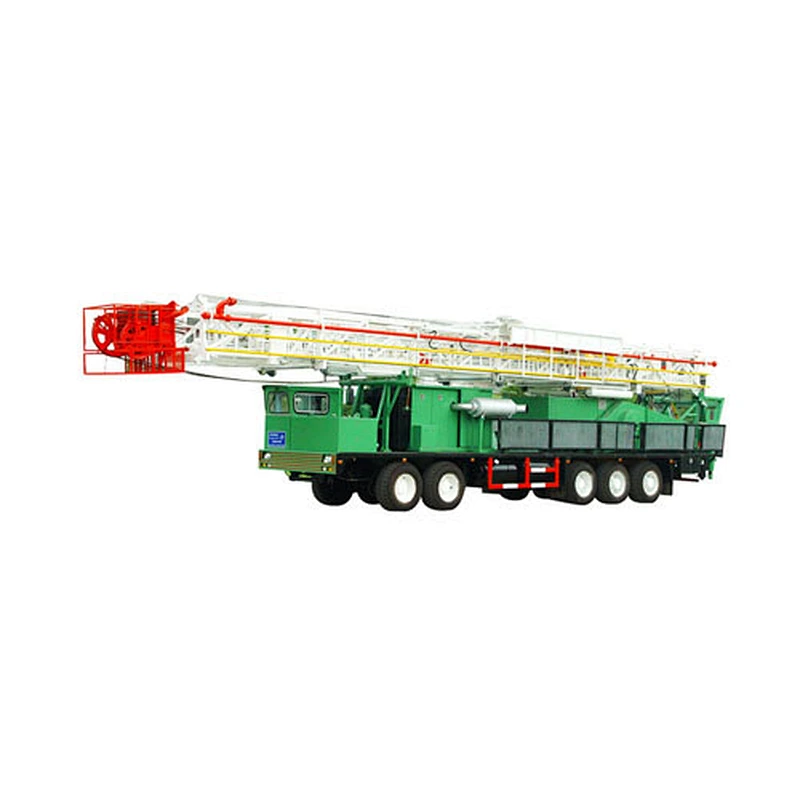

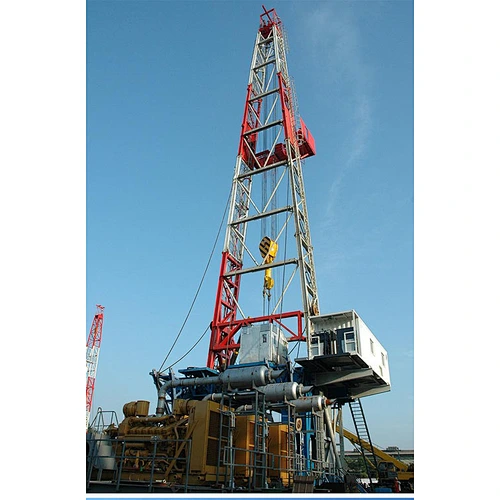

Mobile drilling rig model ZJ10/900Z

Model

ZJ10/900Z

Maximum hook load (kN)

900

Nominal drilling depth（114mm）m

500～1000

Winch power (kW)

261

rigging

6

Rope diameter (mm)

26

Tower height (m)

29，31

Maximum hook lifting speed (m/s)

1.5

Rotor Base Height(m)

4

Rotor bore diameter(mm)

444.5

Main brake

Band and disc brake

Auxiliary brake

224WCB

Chassis model

XD40/8×6

Minimum distance to ground (mm)

311

Minimum turning circle diameter (m)

28

Emission standard

V (international)
