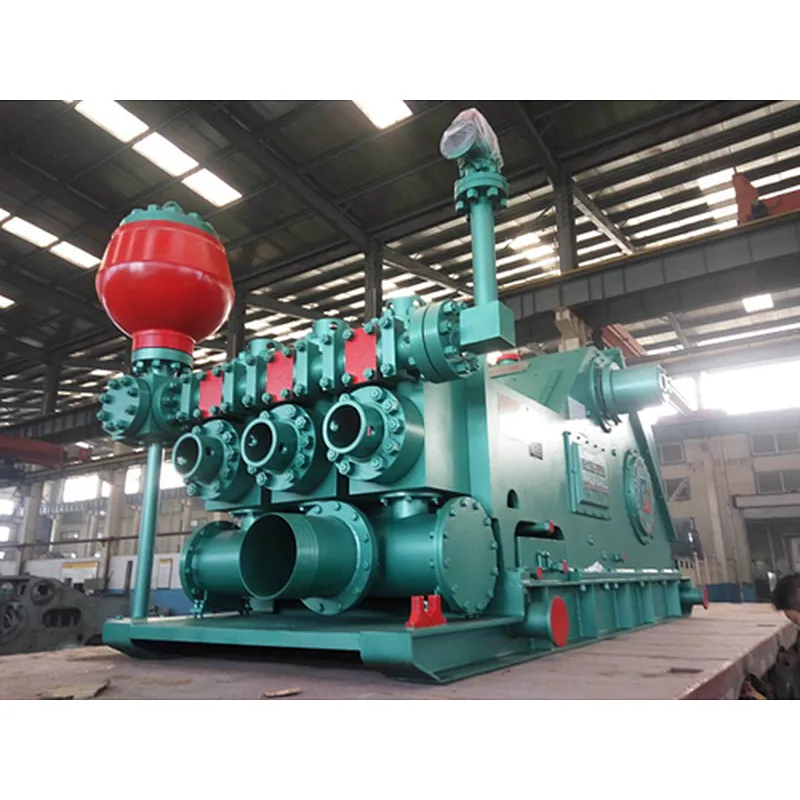

Three-piston mud pump RL-3NB1600

model

RL-3NB1600

Rated power (hp/kw)

1600(1176)

Number of strokes (strokes/min)

120

Stroke length (mm)

305

gear ratio

3.657

Suction hole diameter (mm)

309

Outlet diameter (mm)

128

Valve

7#

Pump sleeve (mm)

φ140--φ190

Overall dimensions (L×W×H mm)

5500×2822×2660

Approximate weight (kg)

27100

stroke/min

Cylinder liner size (mm) and pressure rating (MPa)

φ140

φ150

φ160

φ170

φ180

φ190

35

33

29

26

23

21

Productivity (l/s)

120

28.16

32.32

36.78

41.52

46.54

51.86

110

25.81

29.63

33.71

38.06

42.67

47.54

100

23.46

26.94

30.65

34.60

38.79

43.22

90

21.12

24.24

27.58

31.14

34.91

38.89

80

18.77

21.55

24.52

27.68

31.03

34.57

Based on 100% pump volumetric filling and 90% mechanical efficiency
