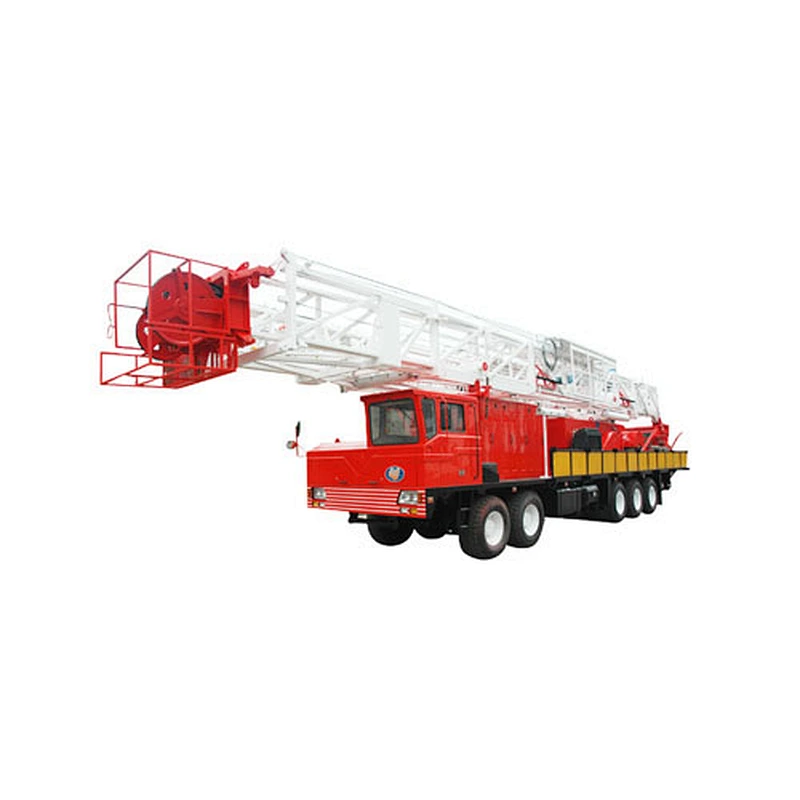

Mobile drilling rig model ZJ15/1350Z

Model

ZJ15/1350Z

Maximum hook load (kN)

1350

Nominal drilling depth（114mm）m

800～1500

Winch power (kW)

403

rigging

8

Rope diameter (mm)

26

Tower height (m)

33，35

Maximum hook lifting speed (m/s)

1.5

Rotor Base Height(m)

4.5, 5, 6

Rotor bore diameter(mm)

444.5

Main brake

Band and disc brake

Auxiliary brake

224WCB

Chassis model

XD50/10×8

Minimum distance to ground (mm)

311

Minimum turning circle diameter (m)

33

Emission standard

V (international)
