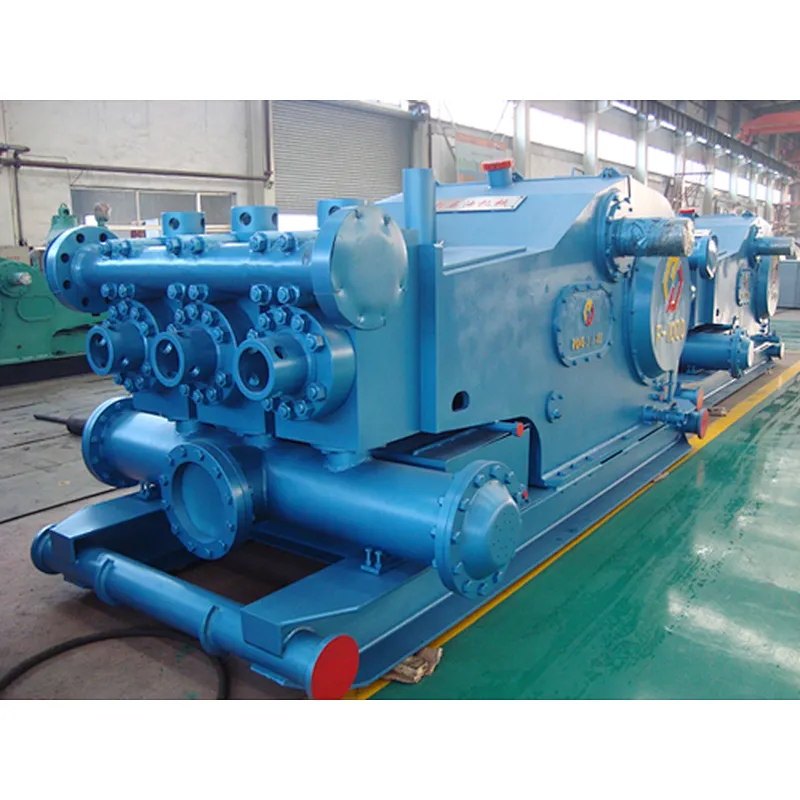

Triple Piston Mud Pump RL-F1000

Model

unit

F-500

F-800

F-1000

F-1300

F-1600

Type

Three-cylinder single-piston pumps

Max, barrel length x stroke

mm

170x191

170x229

170x254

120 x 304.2

inch

6-3/4 x 7-1/3

6-3/4x9

6-3/4x10

7x12

Stroke/minute

spm

165

150

140

120

Rated power

kW

373

597

746

970

1194

hp

Transmission type

Chevron gear

gear ratio

4.226:1

4.125:1

4.207:1

4.206:1

suction manifold

mm

203.2

254

304.2

in

2 flc

10 flc

12 flc

Outlet

mm

102

127

inch

4 internal thread

5 flanges 5000API

Outer diameter of gear drive axle

mm

139.7

177.2

196.25

215.9

inch

5-1/2

7

7-3/4

8-1/2

Key

mm

31.75x31.75

44.45x44.45

50.2x50.2

inch

1-1/4 x 1-1/4

1-3/4 x 1-3/4

2x2

supravalvular cavities

valve over valve

API 5#

API 6#

API 6#

API 7#

weight

kg

9,770

14,500

12,790

24,572

24,791

lb.

21,540

31,970

41,420

54,170

54,650
