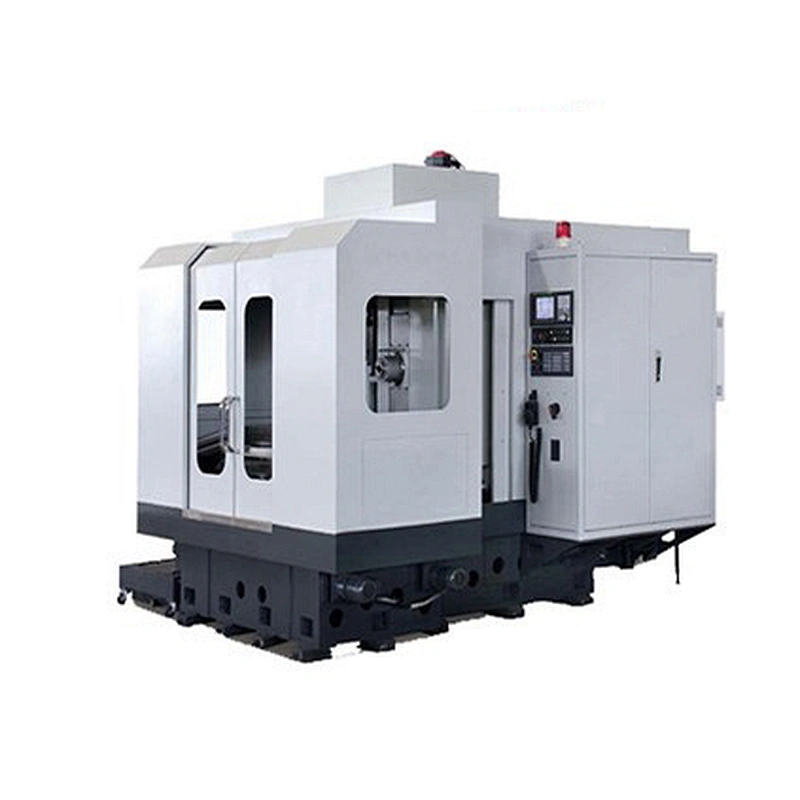

CNC Machining Complex Model TC

Main technical characteristics

Unit

TC400

TC500

TC630

TC800

Axis travelX

mm

600

900

1000

1350

Axis travelY

mm

600

800

850

1100

Axis travelZ

mm

600

800

800

1100

Distance from spindle top to table surface

mm

71-700

70-870

120-970

150-1250

Distance from spindle center to table surface

mm

0-600

50-750

175-975

50-1150

fast travel(X/Y/Z)

m/min

24/24/20

24/24/20

24/24/20

20/20/20

Cutting feed speed

mm/min

1-5000

1-5000

1-5000

1-5000

Turntable size

mm

400*400

500*500

630*630

800*800

Maximum bearing capacity of the turntable

kg

400

500

800

2500

Number of T-slots on the turntable/width/distance

mm

5-14*100

5-14*100

5-18*100

5-22*160

TCNC rotary table positioning accuracy

mm

+-5

+-5

+-5

+-5

TCNC rotary table repositioning accuracy

mm

+-2

+-2

+-2

+-2

Spindle motor power

KW

11

15/18.5

22

22

Large spindle speed

r/min

6000/8000

6000/8000

6000

6000two gears

/1200

/1200

4;01

Conepeaksspindle

BT40/BT50

BT40/BT50

BT50

BT50

Knife library capacity

PC

24

24

24

24

Knife library type

Disk type

Disk type

Disk type

Disk type

larger knife diameter

mm

Ф78/Ф120

Ф78/Ф120

Ф112/Ф220

F112/f22

Ф112/Ф200

Ф112/Ф200

bigand Ilengthknives

mm

300

300

300

300

More knife weight

18

18

18

18

Time of changeknives

s

2.3/4

2.3/44

4

4

Machine weight

kg

9000

13600

16500

19800

Dimension

mm

2500*2150*2050

2850*2530*2480

3200*3500*2700

5375*3535*3177
