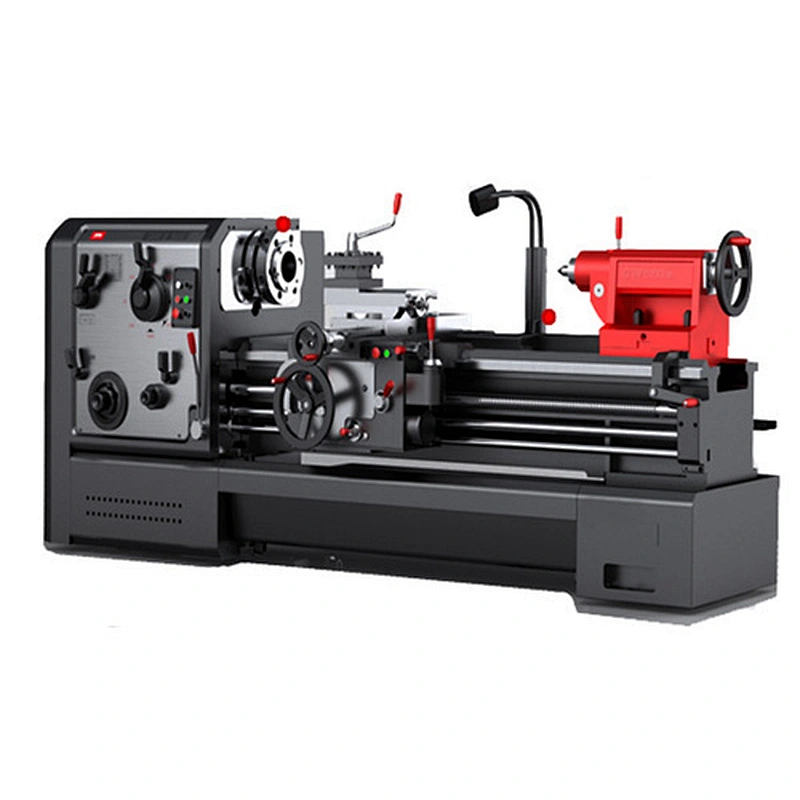

LATHE Model CA6163B

Name

Unit

CW6163B

Processing diameter over bed, mm

mm

630

Machining diameter over the caliper, mm

mm

350

Poppy. Workpiece length

mm

3000

Turning diameter in saddlegroove/Effective Width

mm

800/300

Spindle bore diameterand tospindle end

mm

F104

Spindle nose taperand top cone

mm

F120

Spindle speed range and series

r/min

18 kinds, 7.5-1000

Spindle feed range and series

mm/r

64 species, 0.05-24.3

Range 1:1

mm/r

0,1-1,52

Range 16:1

mm/r

1,6-24,3

Micro feed range with replaceable gear

mm/r

0,05-0,76

The ratio of horizontal feed to longitudinal

1/2

Fast travel speed of the machine seat

mm/min

4000

Machine screw pitch

mm

12（Metric）1/2"inch

Range and type of metric thread

mm

50 kinds, 1-240

Range and type of inch thread

26 species, 14-1tpi

Range and type of modular thread

mm

53 species, 0.5-120

Range and type of pitch carving

24 kinds, 28-1D.P.

Maximum lateral travel of the lower tool post

mm

315

Maximum stroke of the upper tool post

mm

200

moverear quills money

mm

250

Tail quill cone money

Moos No. 5

Machine Guide Width and Hardness of Hardening

mm

550rc52

Main engine

kw

11

fast engine

kw

1.1

Cooling pump motor power

w

90

Machine dimension

mm

5190*1380*1450
