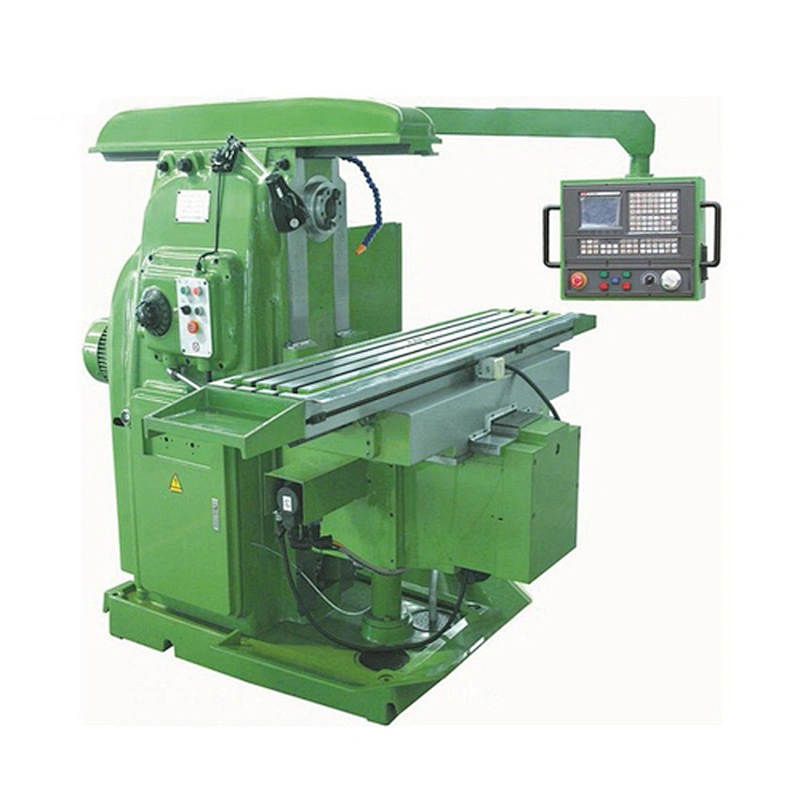

CNC Vertical Milling Machine Model XKA6140

Model NO.: XKA6140

Quantity:

Product Description

CNC Vertical Milling Machine Model XKA6140

Desktop	CNC Vertical Milling Machine	Unit	XKA6132		XKA6140
	Desktop (width*length)	mm	320*1325	320*1700	400*1700	400*2000
	Poppy. load capacity	kg	500	450	800	750
	Number of T-slots		3	3	3	3
	T-slot width	mm	18	18	18	18
	Distance between T-slots	mm	70	70	90	90
moving	MaTo.longitudinal movement of the desktopx	mm	780	980	900	1200
	Mato. transversemove desktopy	mm	255	255	315	315
	Mato. liftingmove desktopz	mm	320	320	335	335
Desktop Accuracy	Desktop Positioning Accuracy	mm	0.035	0.035	0.035	0.045
Desktop Accuracy	Accuracypendesktop positioning	mm	0.025	0.025	0.025	0.035
Spindle	Spindle taper		7:24(iso no.50)	7:24(iso no.50)	7:24(iso no.50)	7:24(iso no.50)
	Spindle bore diameter	mm	29	29	29	29
	Spindle axial travel distance	mm			85	85
	Distance from the spindle axis to the bottom surface of the cantilever	mm	155	155	190	190
innings	Axis feed rangex	Mm/mim	6-3500	6-3500	6-3500	6-3500
	Axis feed rangey	Mm/mim	6-3500	6-3500	6-3500	6-3500
	Axis feed rangez	Mm/mim	6-1800	6-1800	6-1800	6-1800
Engine	general power	KVA	23	23	25	25
	Main engine power	KW	7.5	7.5	11	11
	Main engine rotation speed	R/min	1450	1440	1450	1450
	Longitudinal feed motor torque x	Nm	5	10	10	10
	Cross feed motor torquey	Nm	10	10	10	10
	Feed lifting motor torque z	Nm	15	15	27	27
	Cooling pump motor power	kw	0.125	0.125	0.125	0.125
	Flowcooling pump	L/min	18	18	18	18
others	Power Requirements	vhz	380v+-10%,50HZ+-1HZ	380v+-10%,50HZ+-1HZ	380v+-10%,50HZ+-1HZ	380v+-10%,50HZ+-2HZ
	Machine dimension (lengthwidthheight)	mm	227317701655	255017701655	260021902400	260026002400
	Weight	kg	2850	2850	3850	3900
	Control cabinet size（length Width Height）	mm	4504201200	4504201200	4504201200	4504201200
	Control box size（length Width Height）	mm	450420280	450420280	450420280	450420280
	Control box weight	kg	30	30	30	30
