Name

unit

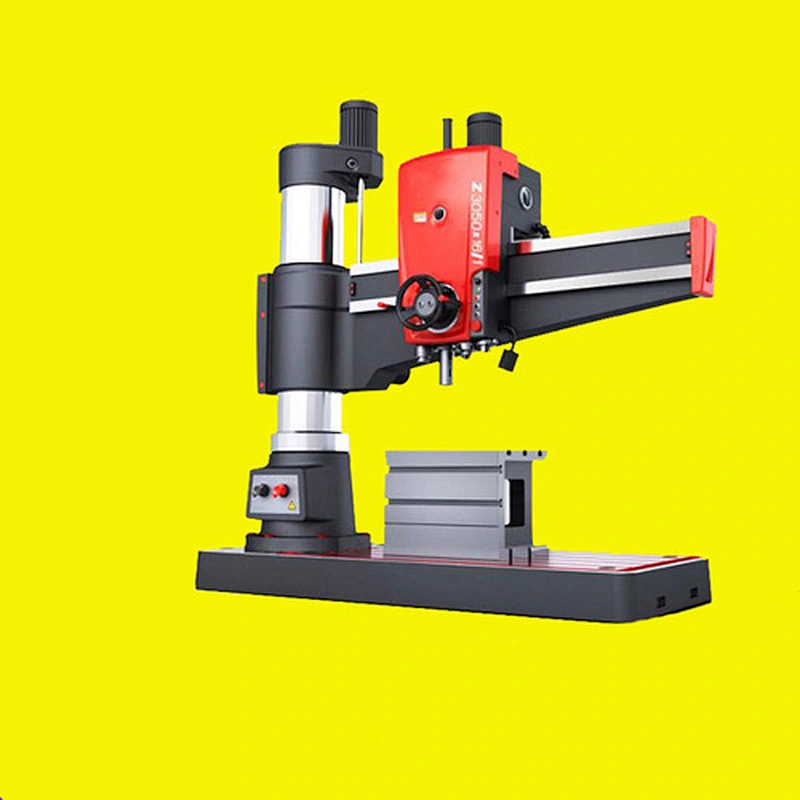

Z3063*20/1

Z3080*25

Max ddrilling diameter

mm

63

80

Distance from the rack to the spindle axis, mm

mm

4502000

500-250

Distance from the end of the spindle to the bottom table of the machine

mm

400-1600

550-2000

spindle travel

mm

400

450

Spindle taper diameter

RPM

5#

6#

Spindle speed range

0.04-3.20

0.04-3.20

Spindle Speed ​​Series

mm/rev

16

16

Desktop size

mm

630*800

800*1000

Stroke length of spindle box in horizontal position

mm

1550

2000

Main engine power

kW

5.5

7.5

Gross weight

kg

7000

11000

Dimension

mm

3080*1250*3291

3730*1400*4025
