Name

unit

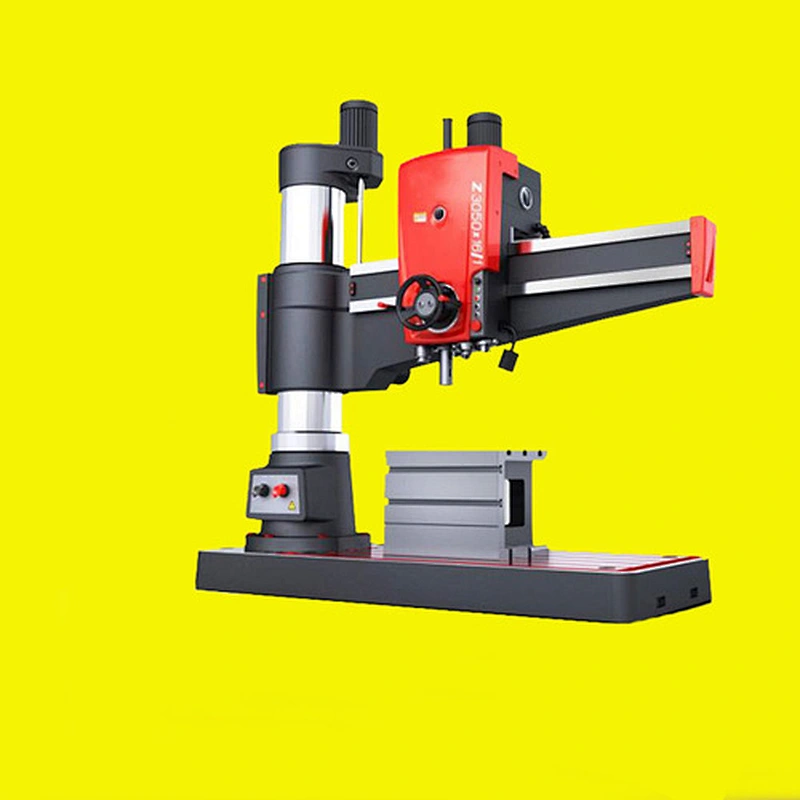

Z3050*16/15

Maximum drilling diameter

mm

50

Distance from the rack to the spindle axis, mm

mm

350-1600

Distance from the end of the spindle to the bottom table of the machine

mm

320-1220

spindle travel

mm

345

Spindle taper diameter

RPM

5#

Spindle speed range

0.04-3.20

Spindle Speed ​​Series

mm/rev

16

Spindle feed range

mm/r

0.04-3.20

Spindle feed series

16

Desktop size

mm

500*630

Stroke length of spindle box in horizontal position

mm

1250

Main engine power

kW

4

Gross weight

kg

3500

Dimension

mm

2500*1070*2840
