Model

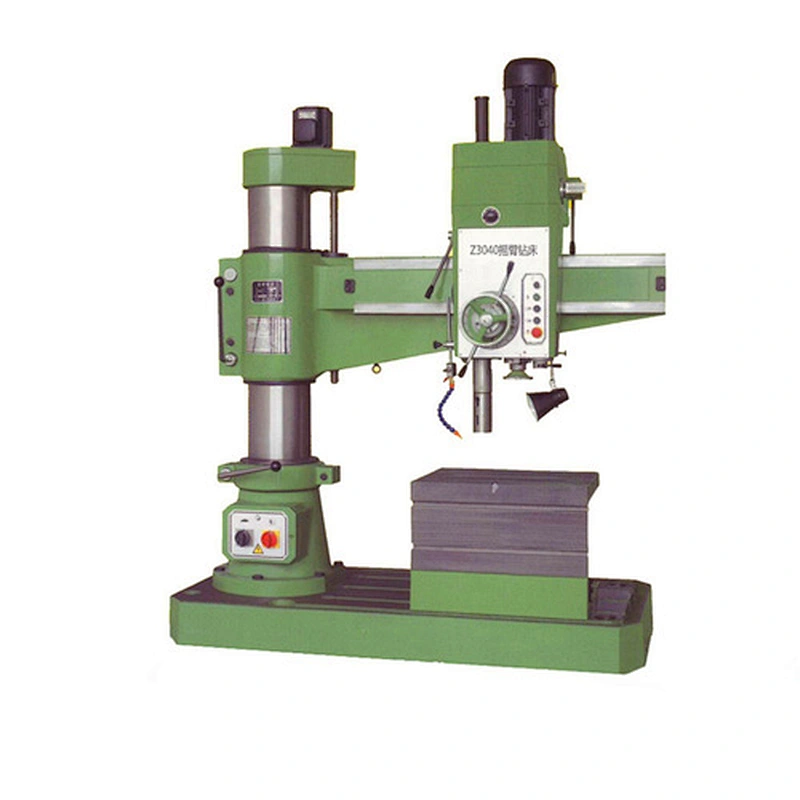

Z3040*12

Max ddrilling diameter

mm

40

Distance from the rack to the spindle axis, mm

Max.

mm

1200

Min.

mm

260

Distance from the end of the spindle to the bottom table of the machine

Max.

mm

950

Min.

mm

250

spindle travel

mm

280

Spindle taper diameter

No.

4

Spindle speed range

ABOUTb/min

32-1600

Seriesspindle speeds

-

12

Spindle feed range,

mm/rev

0,1-0,3

Seriesspindle feed,

-

6

Mmain engine power

kW

3

INEU gross

kg

1800/2000

Dimension

mm

1960*800*2300
