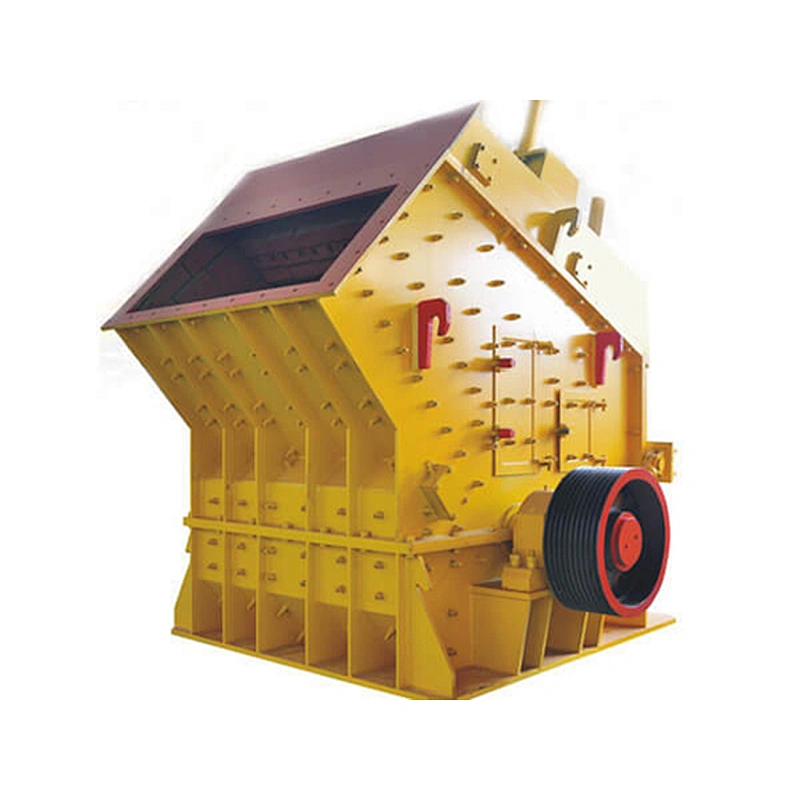

PF Series Impact Crusher

Model NO.: PF

Quantity:

Product Description

Impact-reflectivecrusher seriesPF

Crusher Description：

Impact Crusher Applied in Railway Industries,expressway,energy,chemical industry,construction and other.Designed for crushing materials up to 500 mm in size,like limestone,river pebbles,waste coal rocks,granites.Pressure strength reaches 350MPa.

Crusher Compositions：

Rotor

Beater elements

loading opening

Reflector plates

Frame）

Manufacturing process：

The impact crusher has three stages for crushing materials.

First stage：Beater elements mounted on the rotor strike the crushed material.

Second stage：Crushed materials collide with impact plates.

Third stage：Particles of crushed materials collide with each other.

crusher advantages:

Long term use

Ease of replacement parts，low repair costs

High degree of grinding

Large operation space

The crusher can grind high moisture materials

Specifications:

Type	Sizereceiving hole（mm）	Sizeloaded material（mm）	Productivity (t/h)	Power (kw)	Weight (t)	Dimensionaldimensions（mm）
PF-1007	820×700	300	24-45	37-55	9.5	1800×1600×1800
PF-1010	1170×720	350	50-80	55-75	10	2340×2007×2500
PF-1210	1090×465	350	80-130	110-132	14	2582×2053×2809
PF-1214	1440×465	350	100-160	132-160	18	2582×2403×2809
PF-1315	1532×560	500	140-200	180-220	19.3	2930×2761×3053
PF-1320	2030×860	500	300-350	300-750	29.8	3290×2961×3028
PF-1515	1580×696	500	220-280	250-280	28.5	3553×2835×3277
PF-1520	2980×980	700	400-500	400-480	38.6	3700×3161×3128
PF-1620	1600×2080	800	350-450	500-560	47.5	3800×3350×3250
PF-1822	1500×2250	1000	550-860	630	90	4260×3550×3640
PFV-1007	400×730	300	25-45	55	10.5	1800×1600×1800
PFV-1010	400×1080	350	35-60	75	14.8	2340×2007×2500
PFV-1210	400×1080	350	45-100	110	18	2582×2053×2809
PFV-1214	400×1430	350	60-140	132	23.5	2582×2403×2809
PFV-1315	860×1520	500	70-180	200	28	2930×2761×3053
