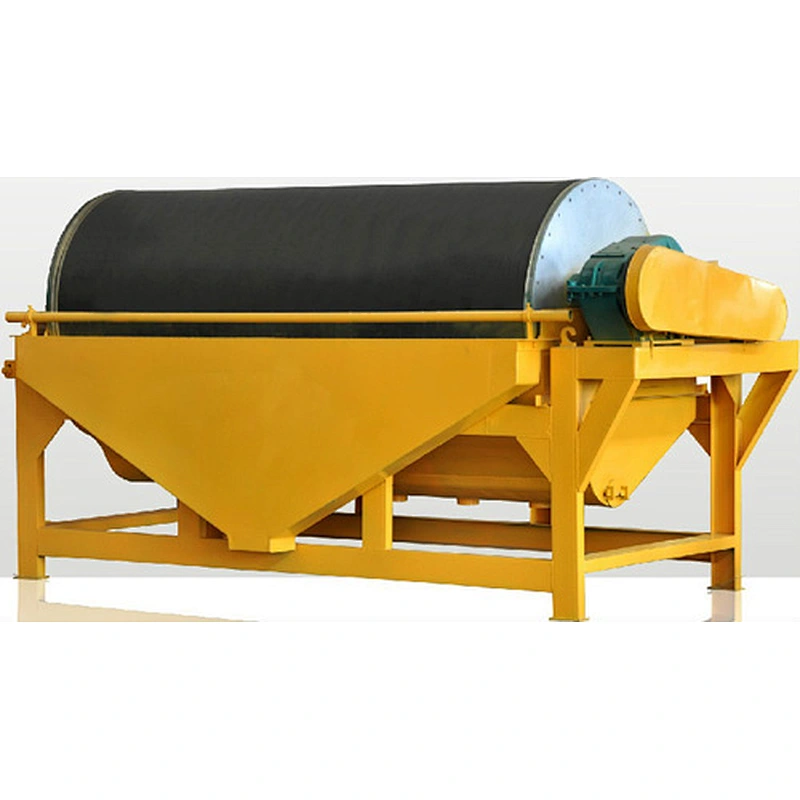

Drum Magnetic Separator

Drum Magnetic Separator

Description of magnetic separator:

drumsthmagneticthseparator wideintendedto captureferromagnetic inclusions from the flow of loose and granular products of various fractions.The magnetic separator is used for wet separation of magnetic pyrite, magnetite, burnt ore, ilmenite, etc. less than 3mm in size and for iron-free work.

Compositions of the magnetic separator:

Drum

brush roller

Magnetic system

Frame

Drive unit

Magnetic separator principle:

Under the influence of a magnetic field, magnetic ore particles are magnetically aggregated, forming a"magnetism group"or"magnetism chain". The"magnetism group"or"magnetism chain"is subjected to the magnetic force in the suspension and moves towards the magnetic pole and is absorbed in the cylinder. The non-magnetic minerals in the"magnets"fall off during the flip, and the"magnets"that are eventually attracted to the surface of the cylinder are the concentrates. The concentrate follows the cylinder to the weakest part of the lip of the magnetic system and is discharged into the concentrate tank under the action of the wash water jet from the water drain pipe.

Advantages of the magnetic separator:

Wide application

Resource saving

high quantity

Low load
