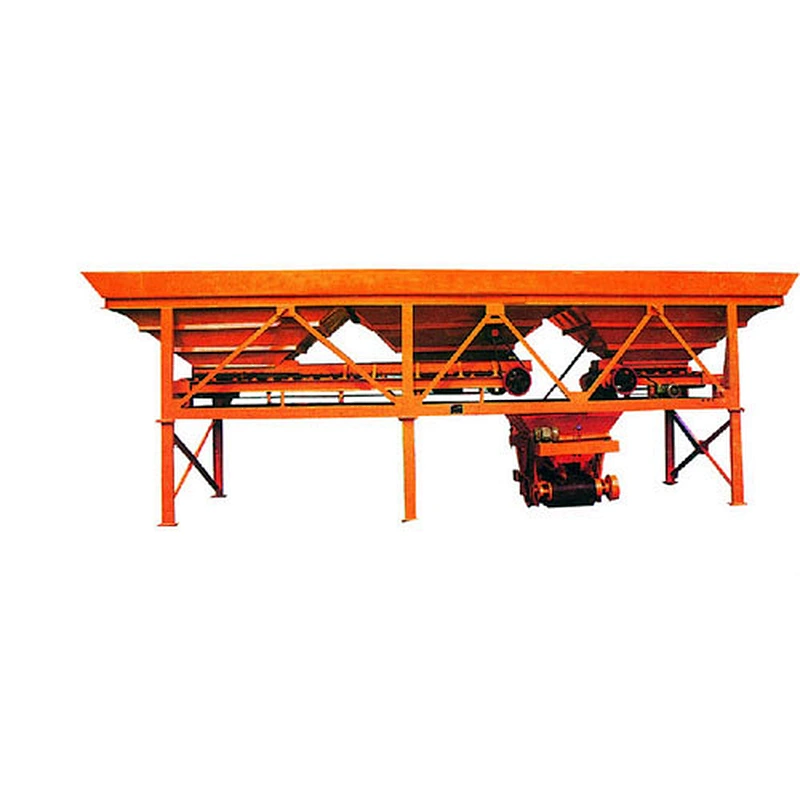

Dosing machine

Dosing machine

Application area:metallurgy,chemical industry,Construction Materials,electric power industry,transport and other industries.

Applicable materials:river pebble,granite,iron ore,limestone,gold and copper ore, etc..D.

Product introduction:Dosing machine is used to transport raw materials,like stones,sand and blocks,on a concrete machine,and then conveying the raw material to the host through the belt and mixing with cement to form concrete.

technical parameter
Model: PLD800 and PLD1200
Weight hopper capacity: 800 l and 1200 l
Hopper capacity: 1500Lx2 and 2500Lx2
Capacity: 48 m/h (dry material) and 56 m/h (dry material)
Dosing accuracy: ± 1%
Maximum weight value: 2000 kg and 3000 kg
The number of ingredients can be: 2 kinds and 2 kinds 3 kinds
Feed Height: 2400mm and 3000mm
Feeding belt speed: 1m/s
Power: 3x2.2 = 6.6 kW and 3x4 = 12 kW
Total machine weight: 2450 kg and 4500 kg
Dimensions: 5600x1830x2700mm and 9000x2200x3500mm
