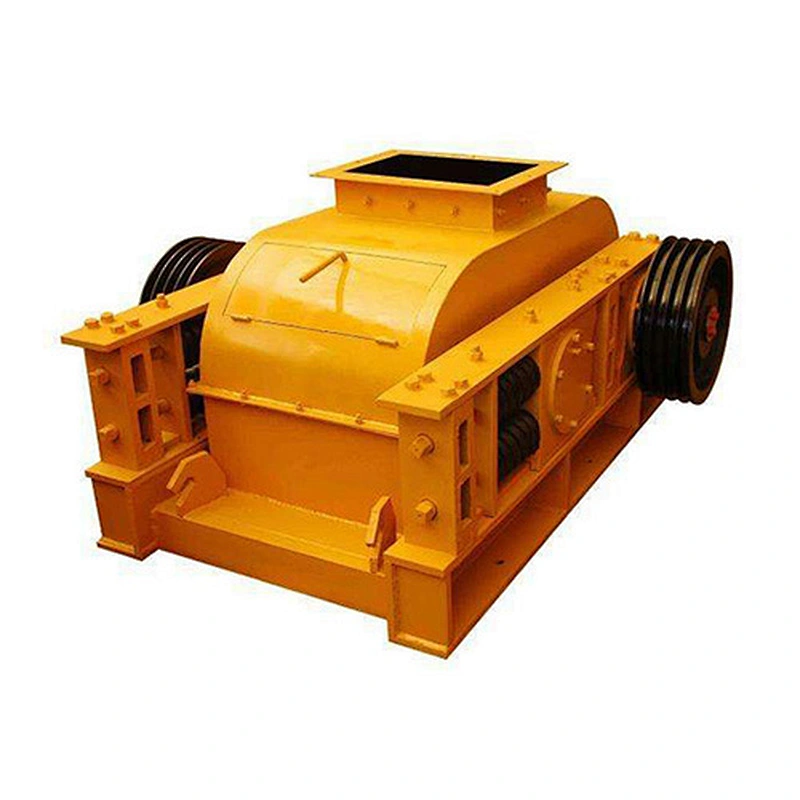

Two-roll crusher with smooth rolls

Two-roll crusher with smooth rolls

Crusher Description：

Smooth roll crusher can be double roll and four roll

which is used in the metallurgy industries、chemical industry,electrical energy and others. Designed for crushing rocks by pulling the material with forcesfrictionand crushing between two parallelcylindricalrolls rotating at the same speed towards each other, and screening out oversized piecesrock.

Crusher with smooth rolls crushes brittle and viscous building materials,e.g. limestone,river pebbles,coals,dolomites,granites,basalts,iron ore,quartzites,cement clinkers、waste coal rocks, etc.

Crusher Compositions:

Rotating rolls：rotating rollers crush, abrade and crush feed materials containing a fixed bearing and a movable bearing.

Adjusting bolts: adjusting bolts adjust the gap between the rolls, which determines the fineness of the resulting raw material

Spring safety device: The safety device is necessary for the normal operation of the crusher and overload protection.Spring pressure balances the force between the two rolls，so that the size of the resulting fraction is uniform.And during the introduction of non-crushable materials, the spring can protect the crusher from breaking..

Drive unit：the drive consists of two motors and rotates the swaths by means of a texrop and an axis of movement.

bed

Advantages of Smooth Roll Crusher

Homogeneity of the final material in size

Efficiency at work

Ease of installation and operation

Standard structure

Specifications:
