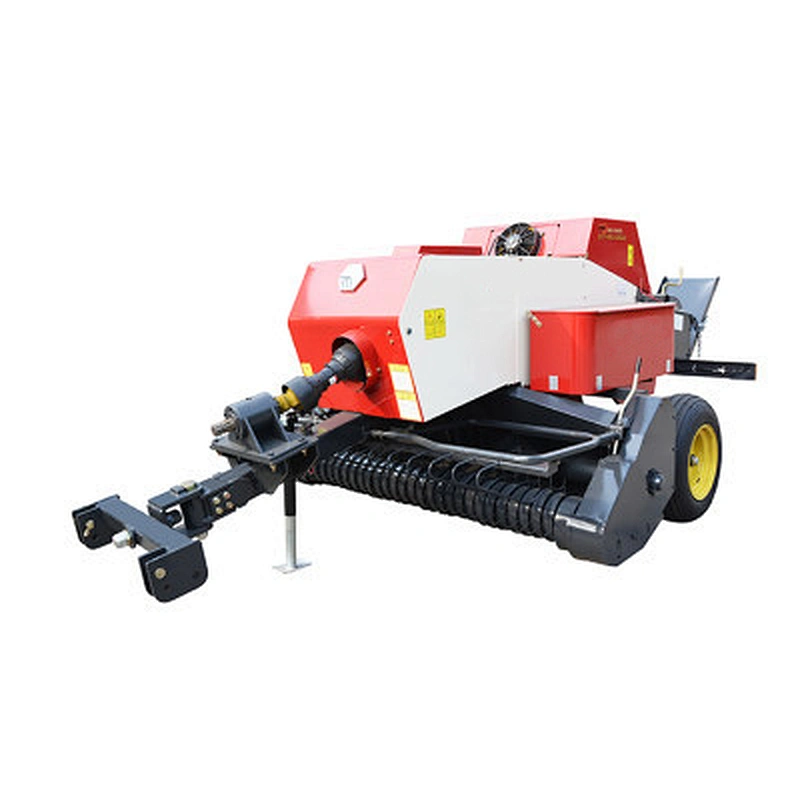

Hay baler model 9YFQ-1960
Hay baler model 9YFQ-1960

Hay baler model 9YFQ-1960

Model NO.
9YFQ-1960
Quantity:

Hay baler model9YFQ-1960

Model

9YFQ-1960

Name

Central baler for square hay bale

Dimension (L*W*H)(mm)

4700*2600*1790

Weight, kg)

1500

Complete meals

Power, kWt)

36-53

PTO

540

pickup

width

1960

Rotation radius

215

Pickup Cylinder Speed ​​(rpm)

136

Number of teeth (pcs)

56

Distance of spring teeth (mm)

66

Filling system

Filling method

Crank with four teeth

Compression system

Compression method

Spring-loaded guide for density control

Compression frequency (times / min)

100

Stroke(mmm)

500

Compression cabin size (width*height) (mm)

450*360

Bale length

305-1320

Knot tying system

Knotter type

Knotter for small square type briquetteD

Number of knotter

2

Number of ropes

6

transmission system

Transmission method

Chain drive and gear

Gearbox type

bevel gearbroadcast

gear ratio

5.43

Travel wheel

track gauge

1890

Hourly productivity

4000-7200
