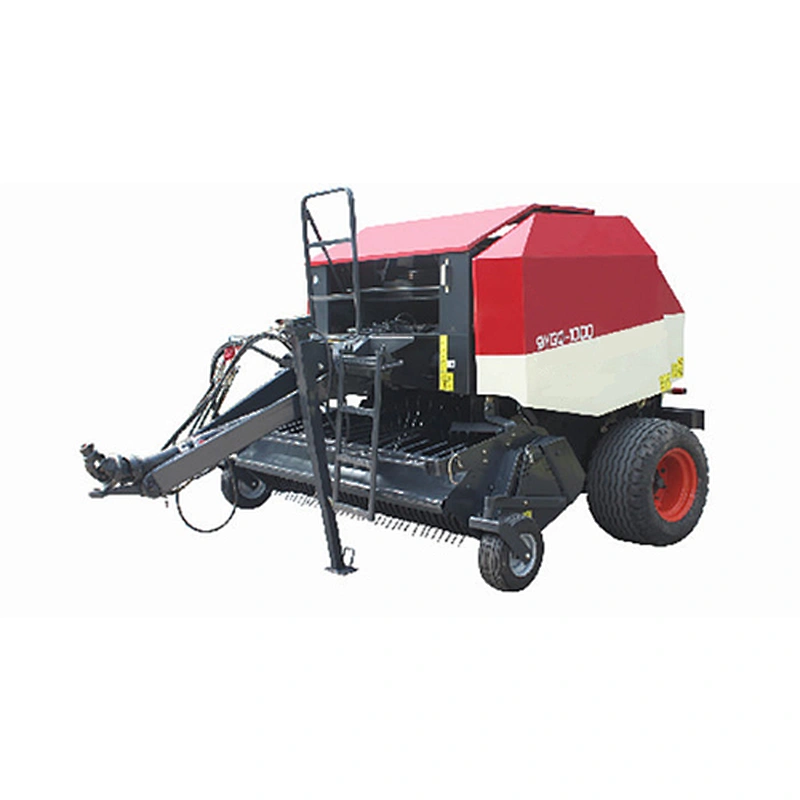

Hay baler model 9YGQ-1000

Name

9YGQ-1000

Model

WDB360

Pickup Width(mm)

2300

Feeding width (mm)

1200

Roll speed (rpm)

160

Roll quantity

14

cutting device

No

Packed hay dimensions（diameter * length）(mm)

Ф300*1200

Electrical control/control

12v/DH35-4Kcontrol device

Bale weight (kg)

120-200

Baling cabin size (diameter*length) (mm)

F960*1200

Equipment dimension during operation (L*W*H) (mm)

4300*3100*2150

Drive way

With a tractor

Atcompletedpower (kw)

51,5-58,8

IID（Power entry system）rotation speed (rpm)

540

Weight (with empty baling cabin) (kg)

2600

Maximum towing weight（kg）

450

Hourly output (kg/h)

≥6000
