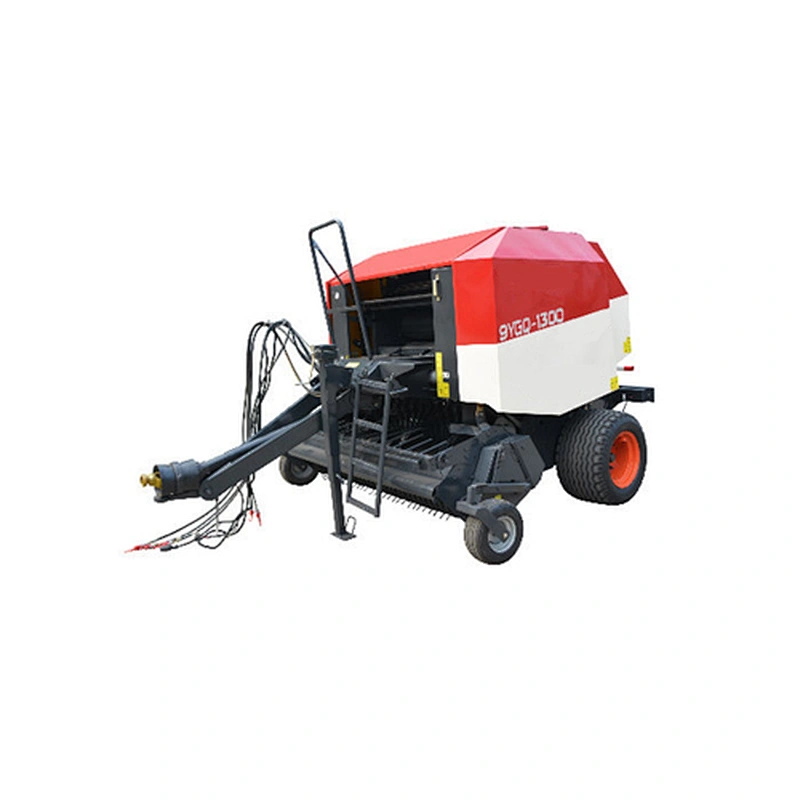

Hay baler model 9YGQ-1300

Name

9YGQ-1300

Model

WDB800

Pickup Width(mm)

2100

Feeding width (mm)

1200

Roll speed (rpm)

124

Roll quantity

16

cutting device

Optional (16 knives)

Packed hay dimensions（diameter * length）(mm)

Ф300*1200

Electrical control/control

12v/DH32-4KControl device

Bale weight (kg)

200*400

Baling cabin size (diameter*length) (mm)

Ф1300*1200

Equipment dimension during operation (L*W*H) (mm)

4290*2830*2400

Drive way

With a tractor

Atcompletedpower (kw)

73,5-88,8

IID（Power entry system）rotation speed (rpm)

540

Weight (with empty baling cabin) (kg)

3020

Maximum towing weight（kg）

600

Hourly output (kg/h)

≥9000
