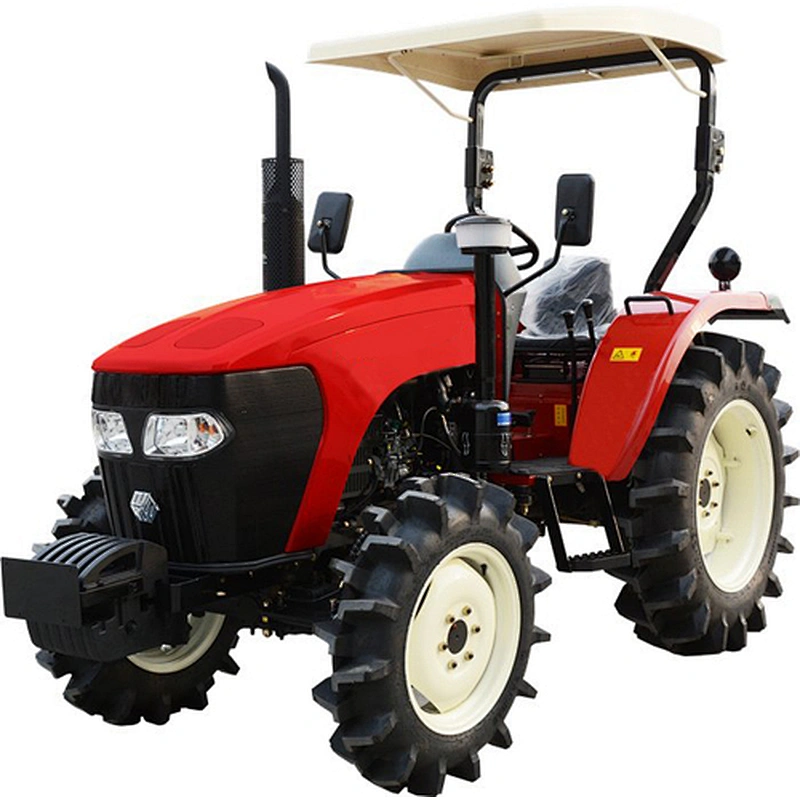

Tractor model 604F

Model

604F

Design

4*4all-wheel drive

Number of gears

8*8

Dimension

Length (mm)

3820

Width (mm)

1710

Height (mm)

2550(To the top ofarcasAsecurity)

2550(up to the top of the cab)

Engine

Power, kWt)

44.1

Rated rotation speed (rpm)

2400

Wheelbase(adjustable)

Front wheel(mm)

1300/1400/1500

Rear wheel (mm)

1300-1500

Min. applicable mass (kg)

2326(with roll cage)/2420(with driver's cab)

Rated thrust (kn)

≥12.8

Min. ground clearance (mm)

385

output shaft

Power, kWt)

≥37,5

Rotation speed (rpm)

540/760 (540/1000 optional)

Axial distance

1992

Fuel tank volume

70
