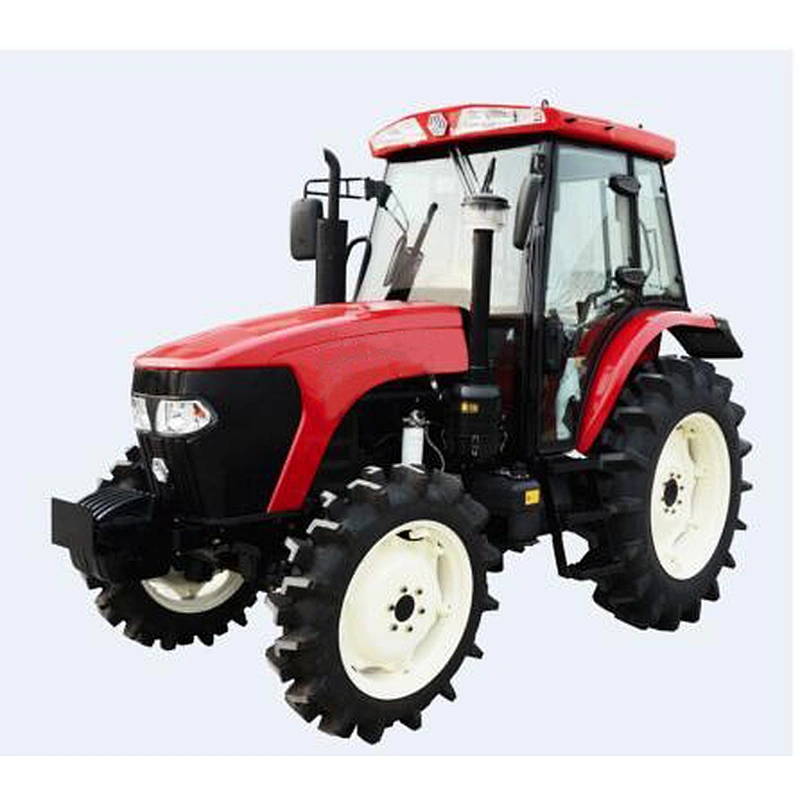

Tractor model 704A

Model

704A

Design

4*4all-wheel drive

Number of gears

12*12

Dimension

Length (mm)

3840

Width (mm)

1882

Height (mm)

2615 (Up to the top toarcasAsecurity)

2635 (Up to the top of the driver's cab)

Engine

Power, kWt)

51,5

Rated rotation speed (rpm)

2300

Wheelbase(adjustable)

Front wheel(mm)

1200-1700

Rear wheel (mm)

1200-1646

Min. applicable mass (kg)

2460 (with roll cage)/2580 (with driver's cab)

Rated thrust (kn)

≥13,8

Min. ground clearance (mm)

385

output shaft

Power, kWt)

≥43,7

Rotation speed (rpm)

540/760 (540/1000 optional)

Axial distance

2012

Fuel tank volume

70
