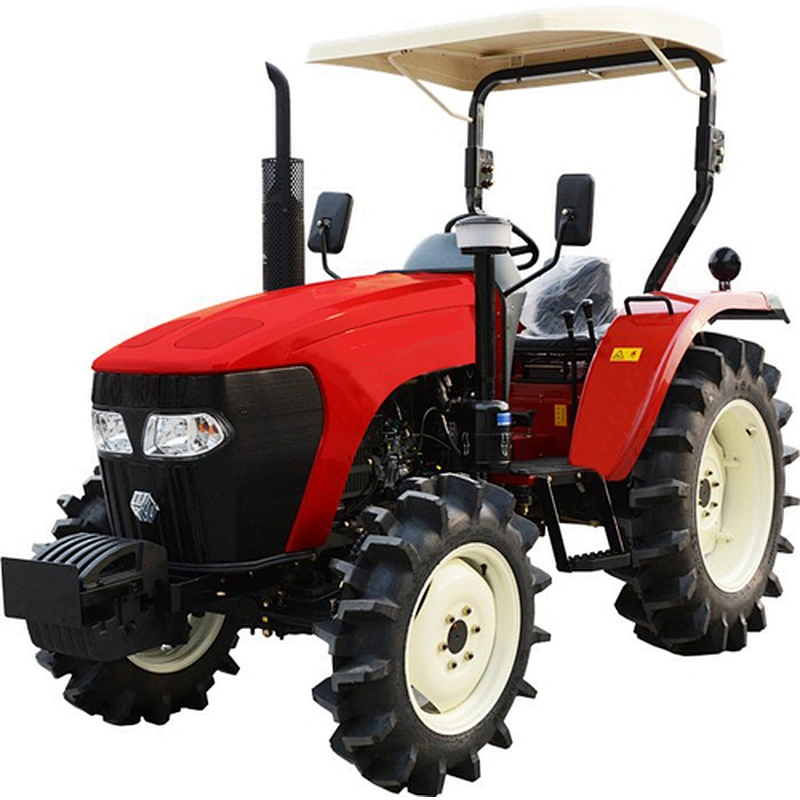

Tractor model WD504K

Model

WD504K

Design

4*4all-wheel drive

Number of gears

8*8

Dimension

Length (mm)

3650

Width (mm)

1572

Height (mm)

2200(Up to the top of the exhaust pipe)

Engine

Power, kWt)

36,8

Rated rotation speed (rpm)

2400

Wheelbase(adjustable)

Front wheel(mm)

1250-1500

Rear wheel (mm)

1160-1260

Min. applicable mass (kg)

1950（Withsafety cage）

2140（with driver's cab）

Rated thrust (kn)

≥11,8

Min. ground clearance (mm)

310

output shaft

Power, kWt)

≥31,3

Rotation speed (rpm)

540/760 (540/1000, 760/1000 optional)

Axial distance

1845

Fuel tank volume

50
