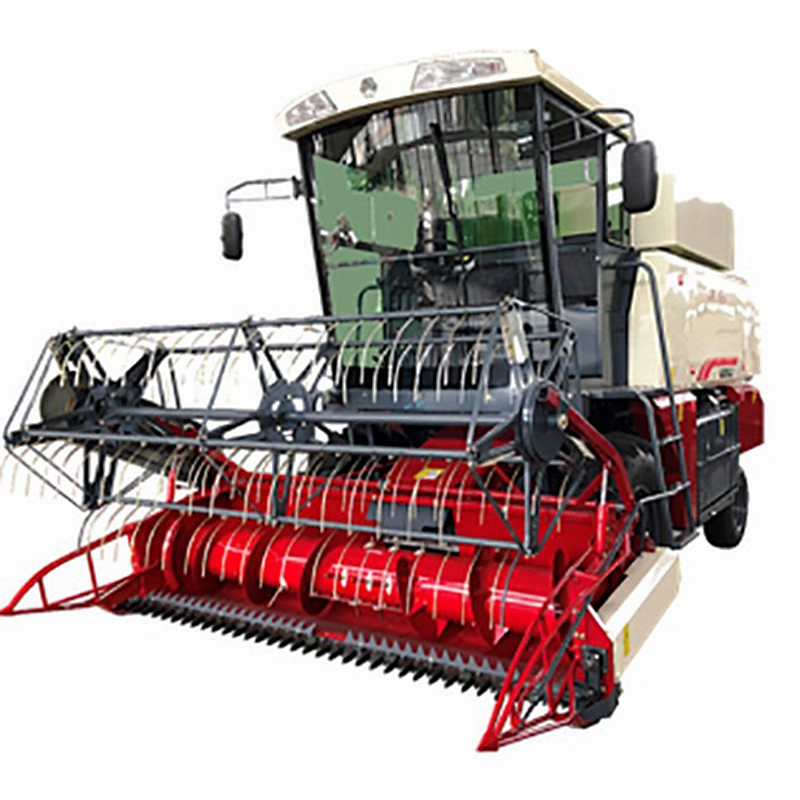

Combine harvester model 4LZ-7C

Model

4LZ-7C

Design

Wheeled self-propelledintegrated

Dimension

Length*width*height(mm)

5900*3200*3350

Weight, kg)

4500

Engine

Model

4G33v16

type

vertical, column, water-cooled, 4-stroke

Power, kWt)

95,5

Rated rotation speed(r/min)

2600

Gearbox type

Hydraulic continuously variable transmission+Manual Transmission

Fuel tank volume（l）

211

Cabin

Luxurious air-conditioned cabin

Minimum turning radius（mm）

Left:6500 Right:7500

Tire size（mm）

Front Tire: 140.9-24

Rear tire:10-15

Track distance（mm）

Front tire:1900

Rear tire: 1870

Axis distance（mm）

2960

Minimum ground clearance（mm）

350

Cutter length（mm）

2600

The amount of feeding (tog/s)

7.0

Header lifting method

Hydraulic

Threshing Method

Threshing tooth longitudinal axial flow

Cylinder size molotylnth (mm)

F700*2520

Control part

Imported hydraulic stepless speed change（HST）Make sure it's faster than similar products on the same gear.

WITHcleaning method

Reciprocating Vibrating Screen+ centrifugal fan

Wayunloading

High rotary discharge

Bean container（m³）

2.8

Working performance（hm³/h）

0.2-1.1

For crops

Rice, wheat, rapeseed, bean, corn,Millet, buckwheat
