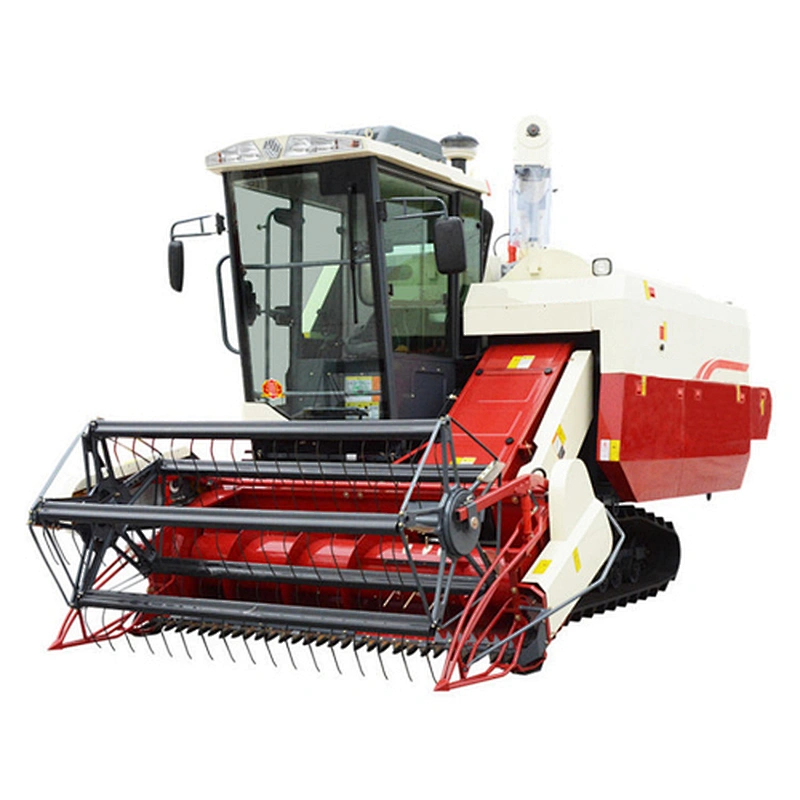

Combine harvester model 4LZ-7.0EM(Q)

Model

4LZ-7.0EM(Q)

Design

Tracked self-propelled integrated

Dimension (at work)

Length (mm)

5840/5840

Width (mm)

2980/2980

Height (mm)

3010/2950

Weight, kg)

3730/3530

Engine

Model

4G33v16

type

vertical, column, water-cooled, 4-stroke

Power, kWt)

92

Rated rotation speed(r/min)

2600

Fuel tank volume (l)

200

Gearbox type

Own, No. 85

Walking part

Caterpillar(distance/number/width)

90mm*56*500mm

(550mmoptionally)

Track width (mm)

1250

Minimum ground clearance (mm)

350

Part for cutting

Cutter length(m)

2,36

Feeding volume(kg/s)

7

Header lifting method

Hydraulic

Thresherth part

Threshing Method

Doubleand Icleaning（Threshing back on the sieve）

Cylinder size molotylnth (mm)

Ф620*2210

Control part

Imported hydraulic stepless speed change（HST）Make sure it's faster than similar products on the same gear.

WITHcleaning method

Vibrating Screen + Centrifugal Fan

Wayunloading

Grain unloading with extended 360 degree rotation

Bean container（m³）

1.6

Working speed

Up to 11000m²/hour

For crops

Rice, wheat, rapeseed, bean, corn,Millet, buckwheat
