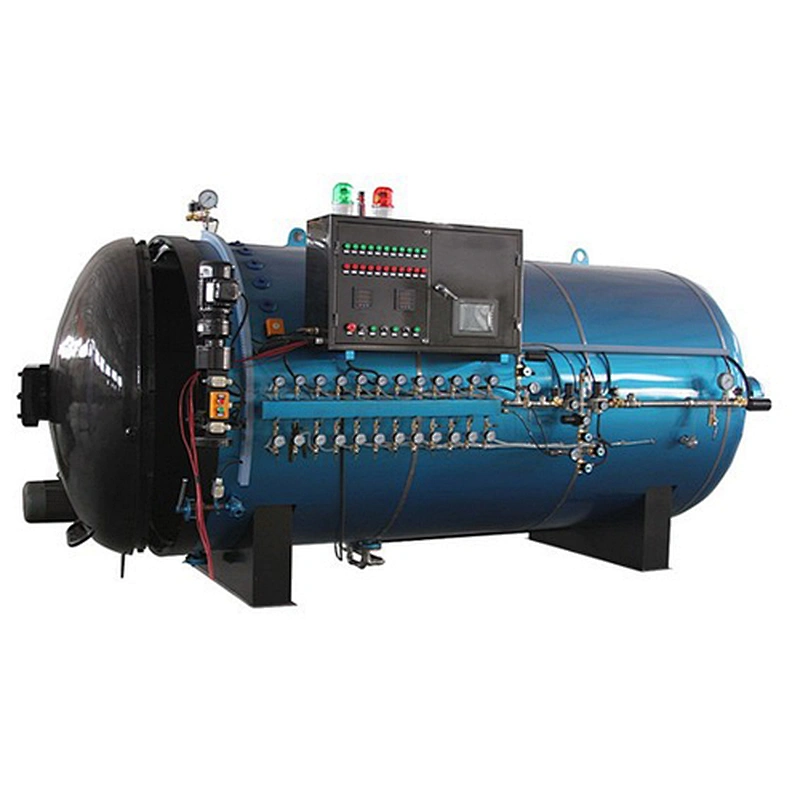

autoclave for vulcanization

Autoclave for vulcanization

Technical parameters of vulcanizing autoclave:

The equipment used for vulcanizing tires in the tire retreading process is a pressure vessel. Through inflating and heating the autoclave, the rubber is vulcanized so that the tread and tire are firmly bonded. Equipped with a vacuum pump for vacuuming the inside of the tire.Suitable for standard rim diameter15–22,5inches. Working pressure: 0.8MPa Voltage: 380V AC / 50Hz Average curing time: 3.5 hours (including air inlet and outlet time) Pressure vessels require inspection, quarantine and registration with the Bureau of Quality Supervision to eliminate the threat security.

Standard function description:

With automatic autoclave door opening and closing device, equipped with triple safety guarantee and two free places, improved production efficiency by PID control system, precise control of curing time. Pressure and temperature are temperature compensated, automatic alarm, automatic timing function uses DPC ( pressure control), Precise pressure control of the inner tube, outer shell and autoclave. There are three heating methods to choose from: electric heating, steam heating, and heat conduction oil heating for vulcanization (The common heating method is electric heating. If you choose heat conduction oil heating, an additional heat conduction oil oven is required).

Optional models: 4-band, 6-band, 8-band, 10-band, 12-band, 16-band, 20-band, 24-band, 26-band, 30-band
