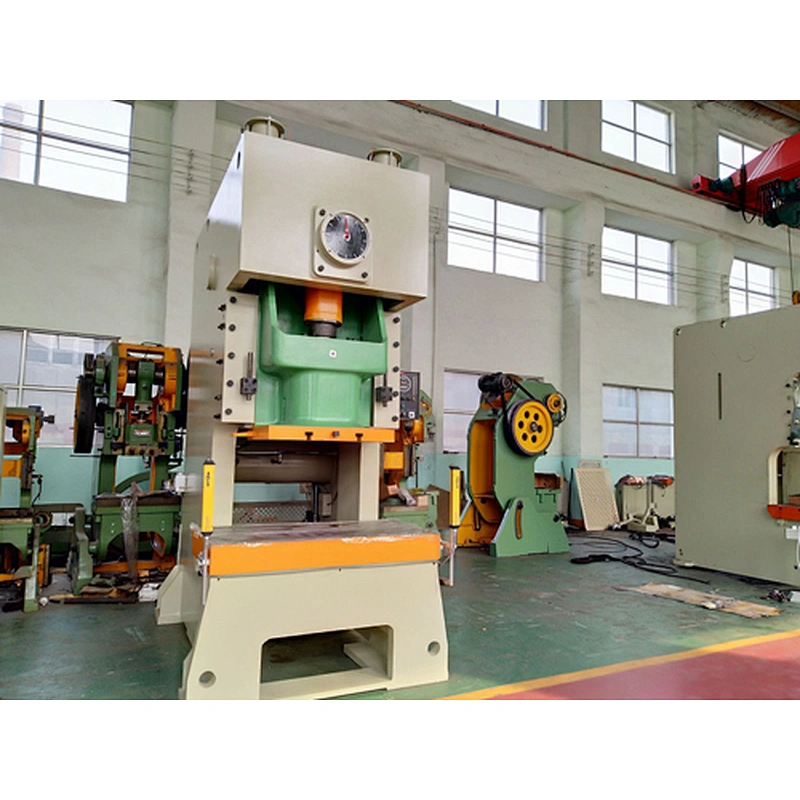

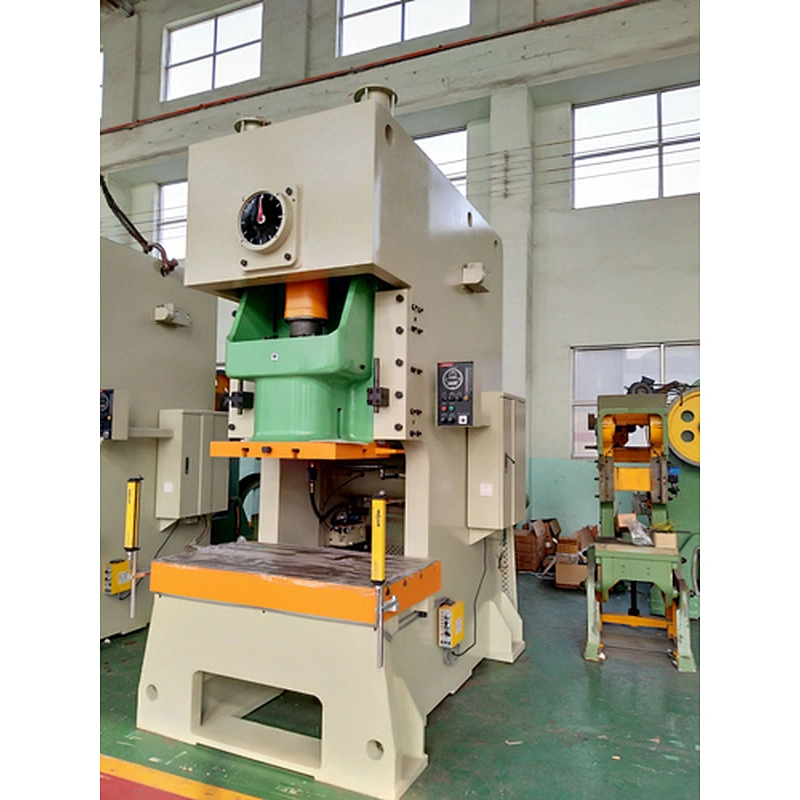

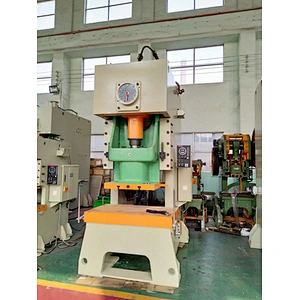

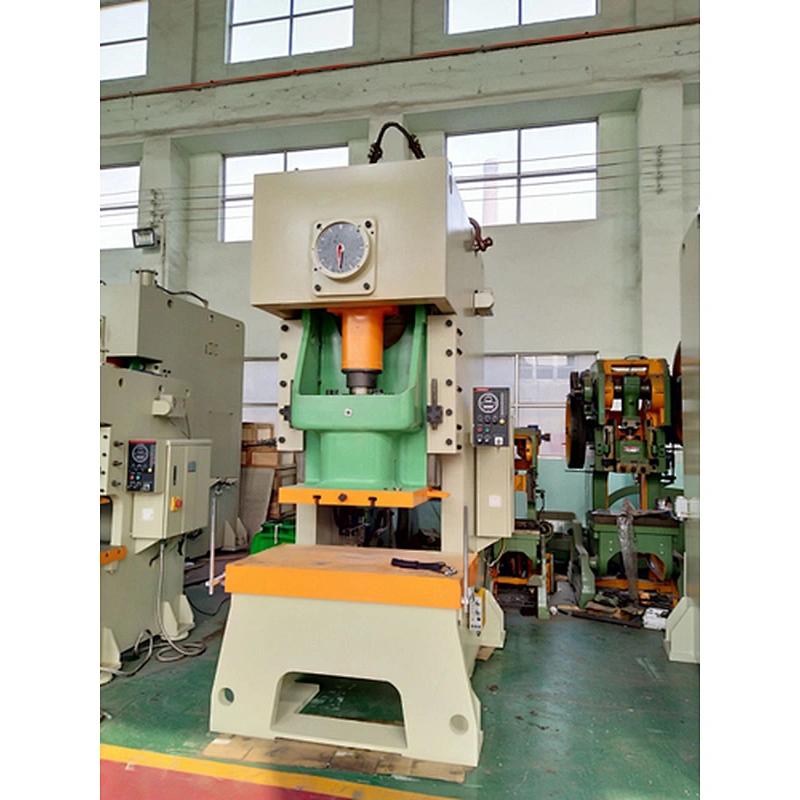

160 ton stamping press

Technical specifications

unit

JH21-160

Rated force

KN

1600

Nominal force stroke

mm

6

Slider stroke

mm

160

Number of moves

min

40

Poppy. mold installation height

mm

350

Height adjustment range for molds

mm

110

Distance from the center of the slider to the bed

mm

380

Desktop size (W*L)

mm

740*1300

Desktop thickness

mm

150

Desktop hole size

mm

480*600

The size of the bottom surface of the slider ( sh.*l.)

mm

580*770

Die Shank Hole Dimension (Diameter*Depth)

m

Φ65*85

Distance between posts

mm

850

Engine power

KW

15

Dimension

mm

2230*1630*3210

Gross weight

KG

14500
