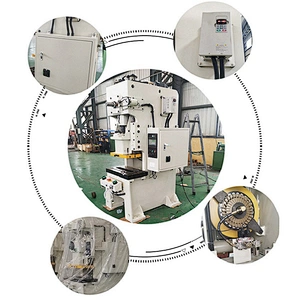

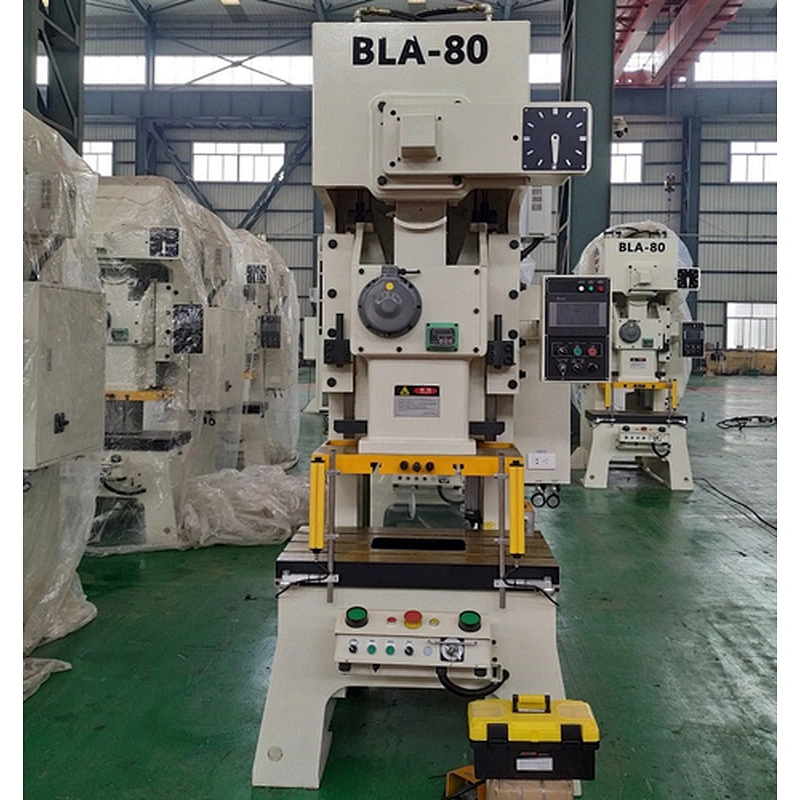

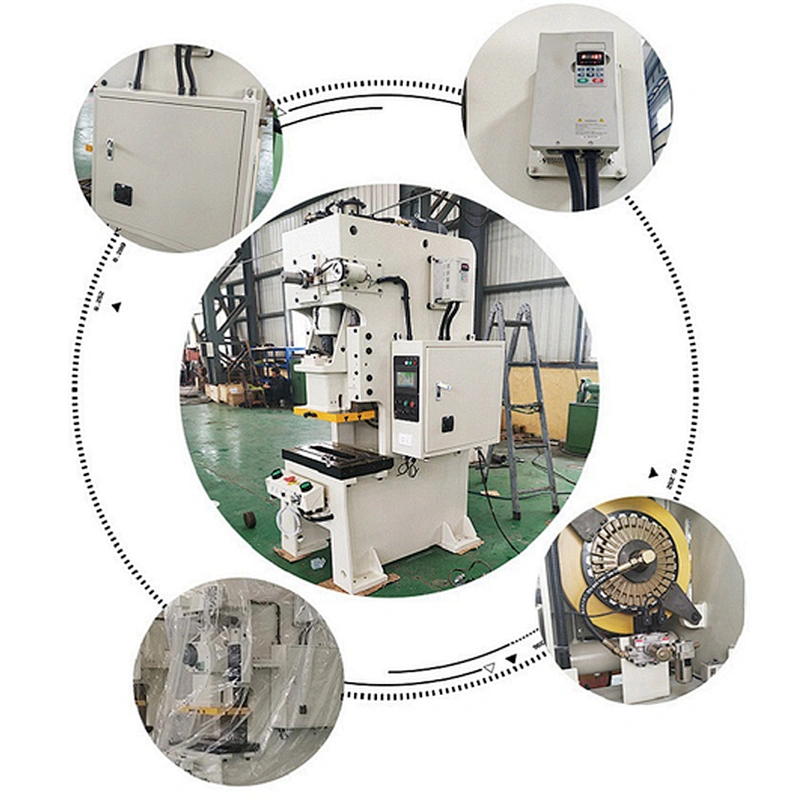

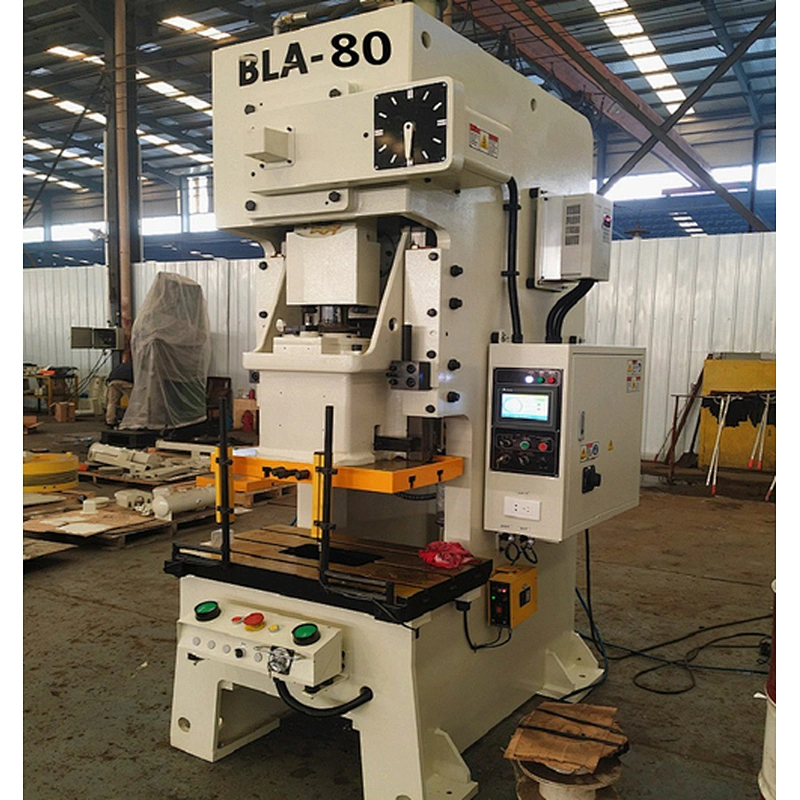

Pneumatic punch press

Unit

BLA-60T

Model

V-shaped type

H-shaped type

Rated force

KN

800

Pulse location

mm

4

2

Stroke length (slide stroke)

mm

150

70

Maximum closed working height（poppy. Form height）

mm

340

380

Number of slider strokes

Spm

35-80

80-120

Slider Adjustment Range (Form Height Adjustment Range)

mm

80

Top desktop size（slide surface size）

LRXFB

770*420*70

Bottom desktop size (desktop size)

LRXFB

1000*550*90

Main engine (main motor)

KWXP

7.5*4

Air pressure

kg/cm²

6

Overall dimensions (L*W*H)

mm

1800*1180*2800

Total weight

T

6.5
