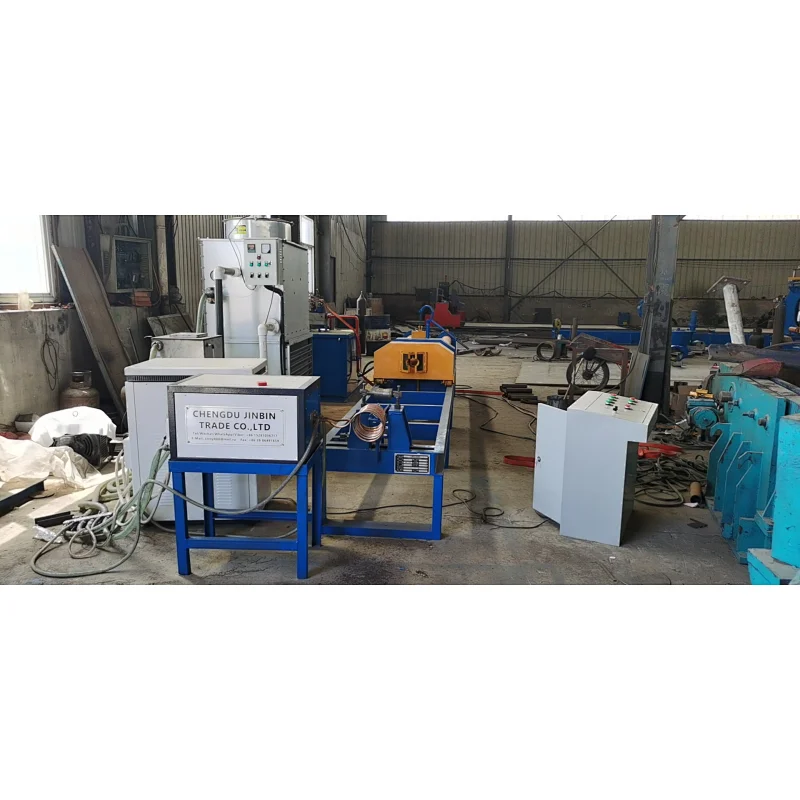

Line for the production of forged bends

Line Composition：

Main mill 1 set

Drive hydraulic station 1 set

Control cabinet 1 set

HDTV 160kW: 1 set

10T cooling tower: 1 set

1.Material specifications：

1.1 Maximum diameter:159mm

1.2 Range of finished pipes: 32-159mm

1.3 Finished wall thickness: 2.5~8mm

1.4 Raw material: 20#, 45#, 16Mn, 27SiMn, carbon steel, alloy steel, etc.

2. Equipment technical parameters:

2.1 Maximum thrust of equipment main cylinder: 150T

2.2 Equipment master cylinder outer dimension: inner diameter: φ140mm outer diameter φ168mm stroke 4000mm

2.3 Push speed: 0~2000mm

2.4 Retraction speed: 5800mm

2.5 Maximum working pressure: 16MPa.

2.6 Max elbow put: 159*8

2.7 Minimum elbow extension: 32*2.5

2.8 Equipment power: 24KW

2.9 Equipment center height: 0.8M

2.10 Outline of main equipment: 6.5m long * 0.85m wide * 1.4m high

2.11 High frequency power supply: 160KW

2.12 Cooling tower: 10T/h

3.Technical parameters of hydraulic drive:

3.1 Working pressure rating: 16Mpa.

3.2 Engine: (total 2 sets)：15KW-1 set with 63SCY 7.5KW-1 set with CBE-80

3.3 Hydraulic station 1 set: (factory made).

Hydraulic parts integrated connection, hydraulic parts using international famous brand products.

4. Description of equipment characteristics.

4.1 Equipment of the pressure plate of the manual gate.

4.2 Hydraulic parts integrated connection using the international standard LISILO series of products.

4.3 Solenoid valve adopts AC 220V control

4.4 All surfaces of the base plate, push plate, gate and gate trough are planed and milled.

4.5 Front and rear gates are made of 45# hardened steel sheet.

4.6 Structural parts of the equipment, such as the base plate and push plate, are annealed after welding to eliminate stress.

4.7 All cylinders of the equipment are manufactured in accordance with the national standard GB/T2348-1993.

2.HDTV 160kw 1pc (Contains from the smallest to the largest coiland transformer)
