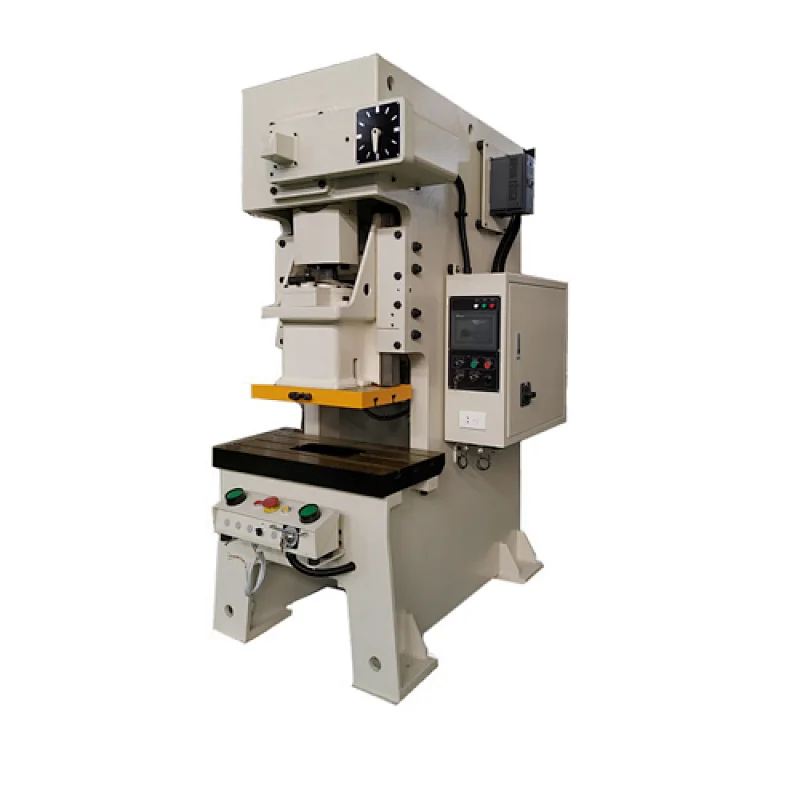

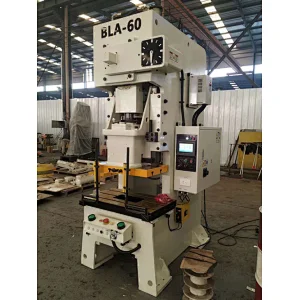

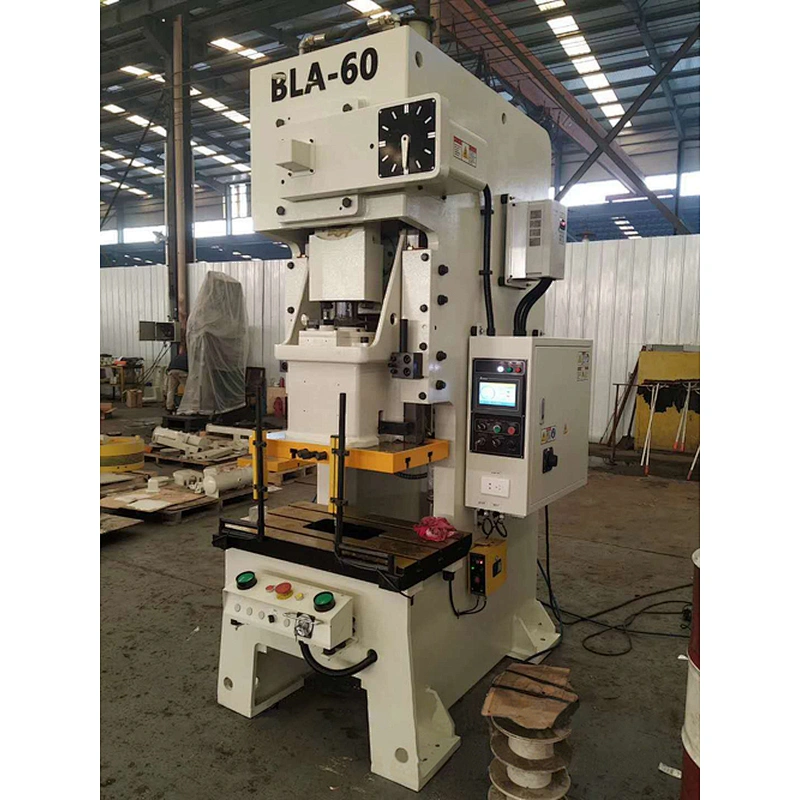

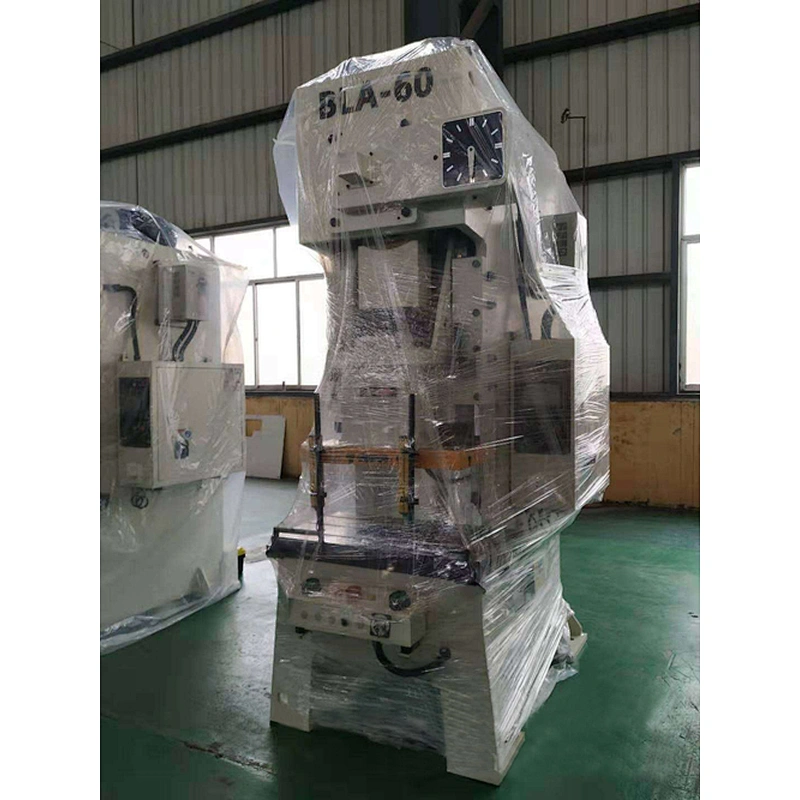

Pneumatic punch press model BLA-60T

Unit

BLA-60T

Model

V-shaped type

H-shaped type

Rated force

KN

600

Pulse location

mm

4

2

Stroke length (slide stroke)

mm

120

60

Maximum closed working height（poppy. Form height）

mm

310

340

Number of slider strokes

Spm

35-90

80-120

Slider Adjustment Range (Form Height Adjustment Range)

mm

75

Top desktop size（slide surface size）

LRXFB

700*410*70

Bottom desktop size (desktop size)

LRXFB

900*500*80

Main engine (main motor)

KWXP

5.5*4

Air pressure

kg/cm²

5-6

Overall dimensions (L*W*H)

mm

1600*1000*2800

Total weight

T

5.6
