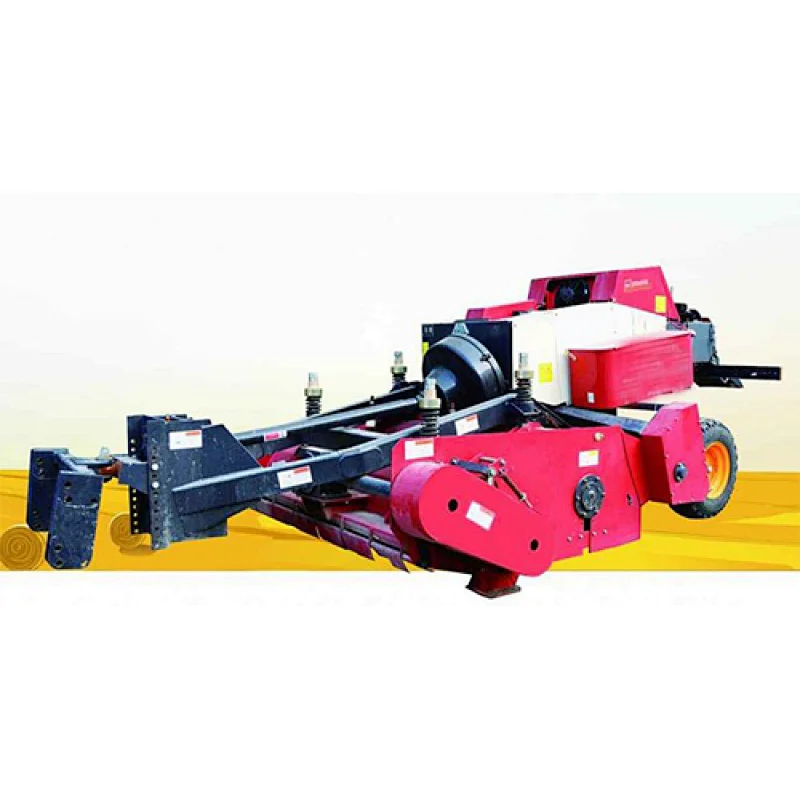

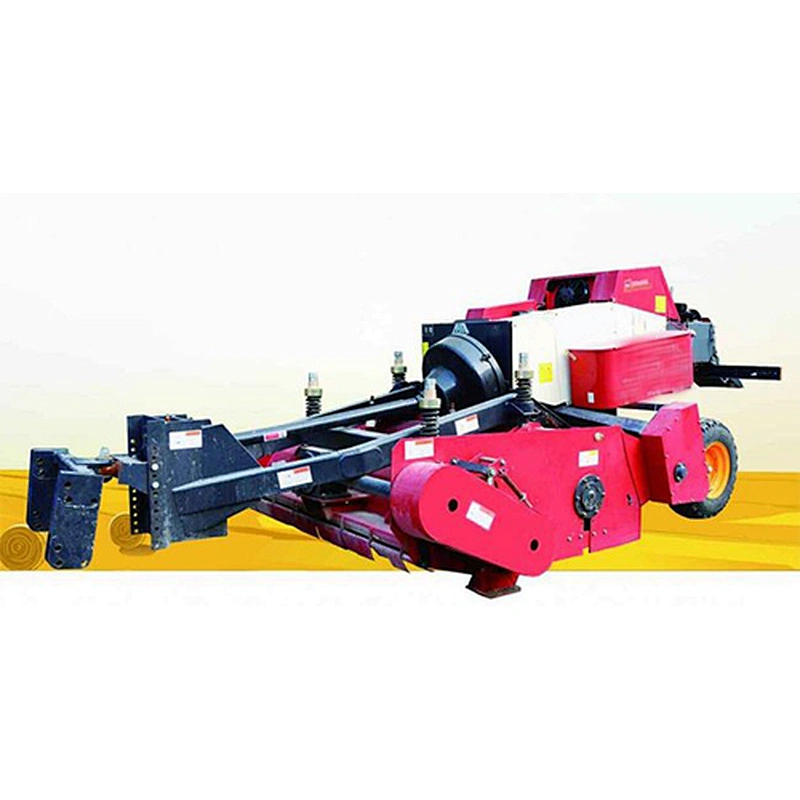

Hay baler model 9YFQ-2200

Model

9YFQ-2200

Name

Single shaft baler for cutting, crushing and baling square briquettes

Dimension (L*W*H)(mm)

5730*2720*1960

Weight, kg)

2400

Complete meals

Power, kWt)

≥60

PTO

720

Pickup

width

2200

Rotation radius

280

Pickup Cylinder Speed ​​(rpm)

2150

Number of teeth (pcs)

/

Distance of spring teeth (mm)

<100

Filling system

Filling method

Crank with four teeth

Compression system

Compression method

Spring-loaded guide for density control

Compression frequency (times / min)

100

Stroke(mmm)

550

Compression cabin size (width*height) (mm)

450*360

Bale length

305-1320

Knot tying system

Knotter type

Knotter for small square type briquetteD

Number of knotter

2

Number of ropes

6

transmission system

Transmission method

Chain drive, belt drive and gear drive

Gearbox type

bevel gearbroadcast

gear ratio

Slip Clutch and Safety Shear Bolt

Travel wheel

track gauge

1890

Hourly productivity

4000-7200
