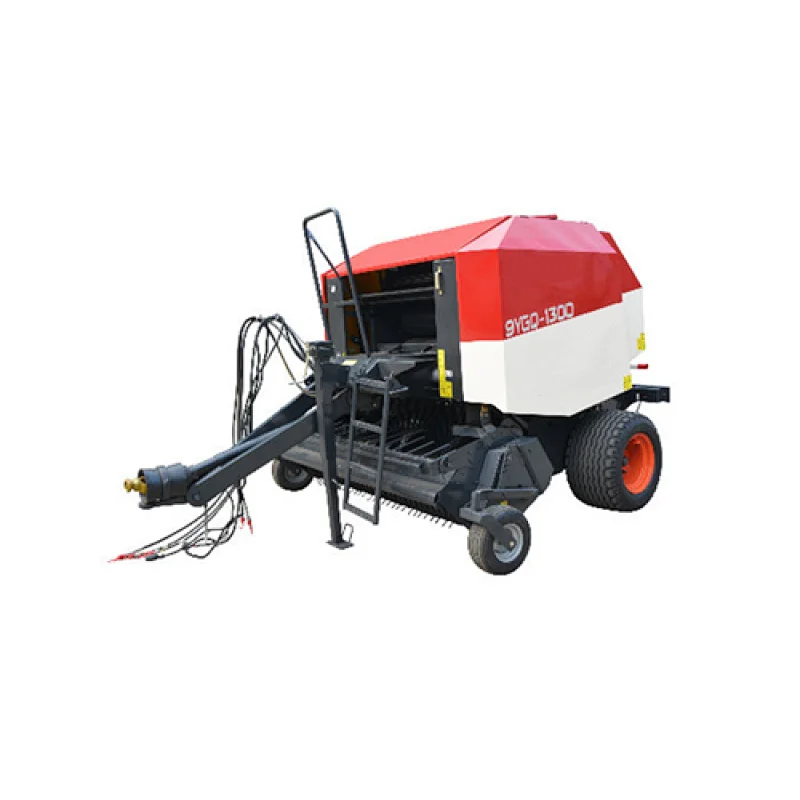

Hay baler model 9YGQ-1300A

Name

9YGQ-1300A

Model

/

Pickup Width(mm)

2350

Feeding width (mm)

1200

Roll speed (rpm)

124

Roll quantity

16

cutting device

Optional (16 knives)

Packed hay dimensions（diameter * length）(mm)

Ф300*1200

Electrical control/control

12v/DH35-4Kcontrol device

Bale weight (kg)

200-400

Baling cabin size (diameter*length) (mm)

F1300*1200

Equipment dimension during operation (L*W*H) (mm)

4300*3100*2150

Drive way

With a tractor

Atcompletedpower (kw)

Approximately 73.5

IID（Power entry system）rotation speed (rpm)

540

Weight (with empty baling cabin) (kg)

3260

Maximum towing weight（kg）

/

Hourly output (kg/h)

≥9000
