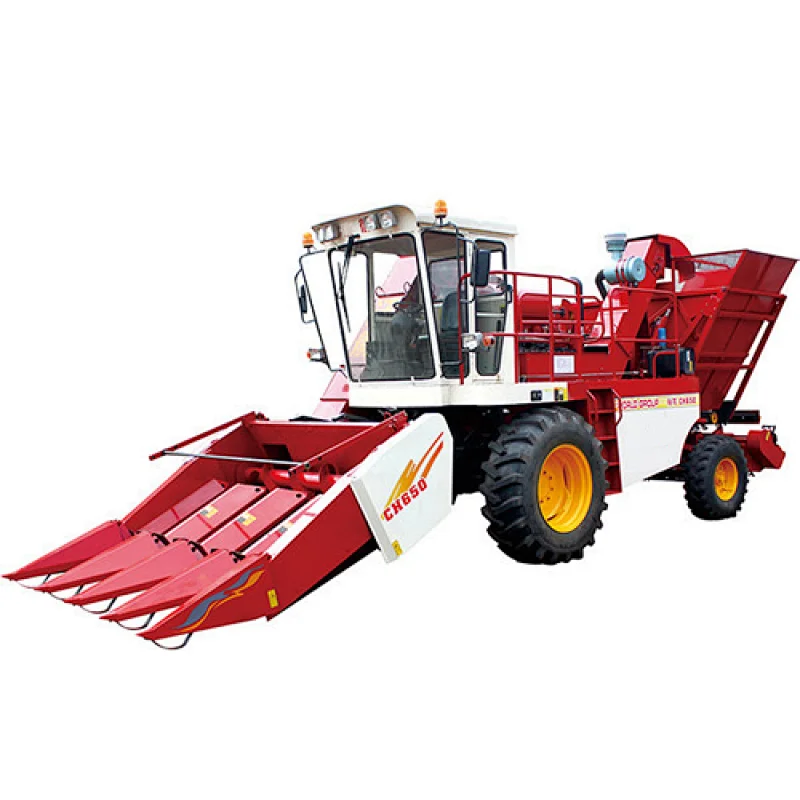

Combine for corn model 4YZ-4

Model

4YZ-4

Design

Wheeled self-propelledintegrated

Strings

4

Line spacing (mm)

650

Dimension

Length (mm)

9400

Width (mm)

3220

Height (mm)

3450

Engine

Rated power（kw）

118

Adapt to line spacing（mm）

600-700

Roll Form for Pullingrod

Hexagonal

Formrollto collectcorn

slab

Formskinning roll

Combination of rubber and semi-rubber iron rolls

Poppy. Height forcollectioncorn (mm)

2420

Min. Ground clearance (mm)

≥300

Straw chopper design

Butterfly knife

Gear box type

Mechanical + hydraulic stepless speed change

Wheel size

Guide wheel

12.0-18

drive wheel

18.4-30

Terteric working capacity (km/h)

1.6-5.3

Fuel consumption per unit area（kg/nm²）

≤40

Wayunloading

Hydraulic tipping

Return to field system

Central1JH-2400

conveyor system

Lateral
