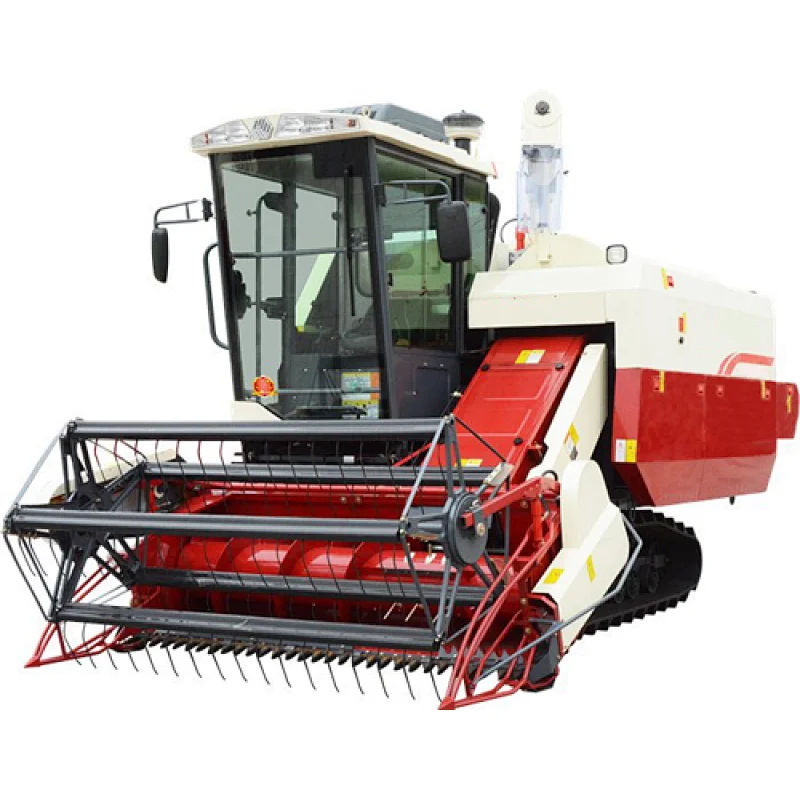

Combine harvester model 4LZ-6.0E

Model

4LZ-6.0E

Design

Tracked self-propelled integrated

Dimension (at work)

Length (mm)

5590

Width (mm)

2520

Height (mm)

3010

Weight, kg)

3480

Engine

Model

4G33v16

type

vertical, column, water-cooled, 4-stroke

Power, kWt)

82.3

Rated rotation speed(rpm)

2600

Fuel tank volume (l)

200

Gearbox type

Own, No. 85

cabin

Plastic steel ceiling, luxury air-conditioned cabin

Walking part

Caterpillar(distance/number/width)

90mm*53*500/550mm

Track width (mm)

1250

Minimum ground clearance (mm)

350

Part for cutting

Cutter length(m)

2.2

Feeding volume(kg/s)

6

Header lifting method

Hydraulic

Thresherth part

Threshing Method

Threshing tooth longitudinal axial flow

Cylinder size molotylnth (mm)

Ф620*2210

Control part

Imported hydraulic stepless speed change（HST）used, Whatwouldhe wasfaster than similar products on the same gear.

WITHcleaning method

Vibrating Screen + Centrifugal Fan

Wayunloading

Grain unloading with extended 360 degree rotation

Bean container（m³）

1.6

Working speed

Up to 10000m²/hour

For crops

Rice, wheat, rapeseed, bean, corn,Millet, buckwheat
