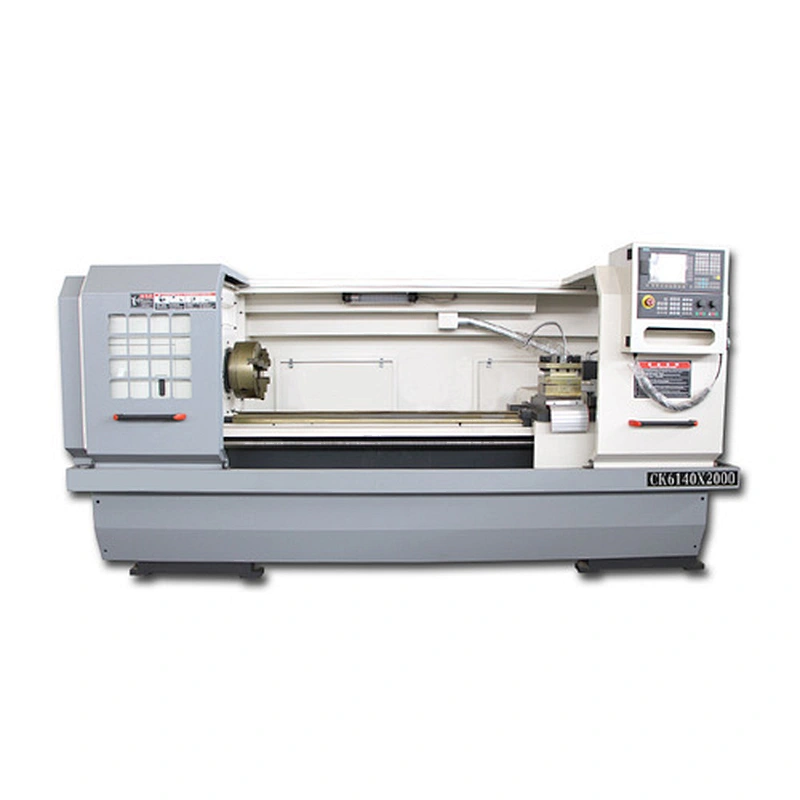

CNC Lathe Model CK6140
CNC Lathe Model CK6140

CNC Lathe Model CK6140

Model NO.
CK6140
Quantity:

CNC Lathe Model CK6140

Name

Unit

options

Poppy. Over bed turning diameter

mm

Ф400

Distance between centers

mm

750/1000/1500/2000

Maximum cutting diameter

mm

Ф400

Poppy. Turning diameter over slide

mm

f240

Spindle endand code

A2-8

Spindle nose taper

f90,1:20

Spindle bore diameter

mm

f82(Oba cartridgechic

Spindle speed range

r/mim

100-1800

Poppy. spindle output torque

Nm

534

Spindle speed series

Mechanical 3 gears, infinite gears

Main engine output

30 minute rating

kw

7.5

Continuous ranking

kw

7.5

Standard chuck

Chuck diameter

mm

Ф250

Axis rapid traverse speedX

m/min

4(radius

Axis rapid traverse speedZ

m/min

8

Axis travelX

mm

290

Axis travelZ

mm

750/1000/1500/2000

Diameterrear quills money

mm

F65

moverear quills money

mm

140

Spindle taperass money

M5

Caliper model

Vertical four position

Horizontal six-position

Blade size

round knife

mm

25*25

Core diameter of drilling tool

mm

F25, F32

Machine weight

750mm

kg

1800

1000mm

kg

2000

1500mm

kg

2500

2000mm

kg

2800

Center height from base

mm

1085

Machine dimension

750mm

mm

2350*1410*1540

1000mm

mm

2600*1410*1540

1500mm

mm

3100*1410*1540

2000mm

mm

3600*1414*1540
