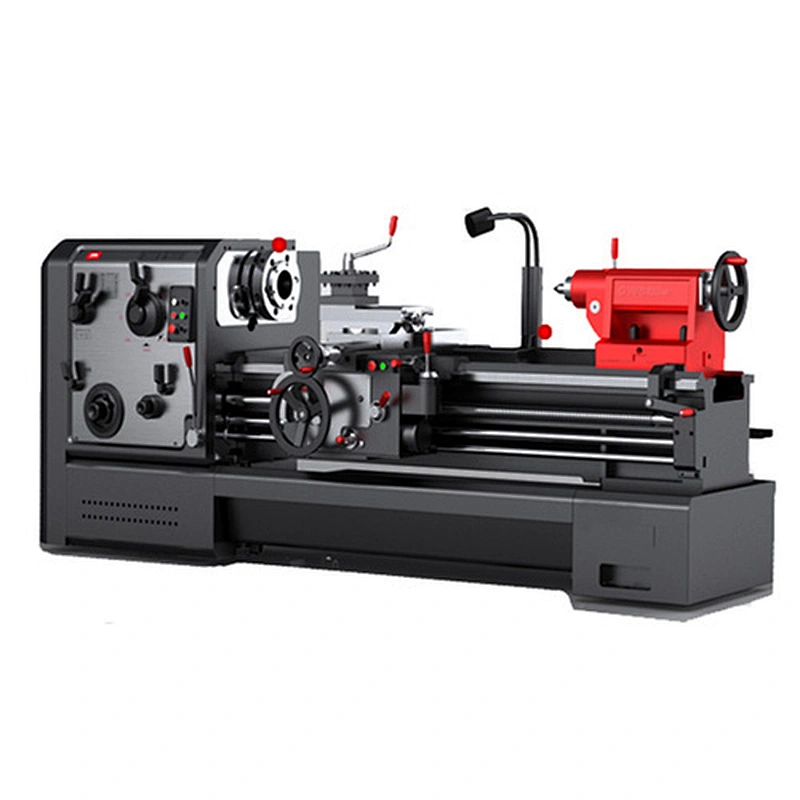

LATHE Model CW61100 and CW62100
LATHE Model CW61100 and CW62100

LATHE Model CW61100 and CW62100

Model NO.
CW61100 и CW62100
Quantity:

LATHE Model CW61100 and CW62100

Name

Unit

CW61100

CW62100

Processing diameter over bed, mm

mm

1000

Machining diameter over the caliper, mm

mm

680

Poppy. Workpiece length

mm

1500,3000,4000,5000-15000

Turning diameter in saddlegroove/Effective Width

mm

1200/310

Spindle bore diameterand tospindle end

mm

F104,D11(Bseries), Ф130,D11(Cseries),

Spindle nose taperand top cone

mm

F120(Bseries),F140(Cseries)Moos No. 5

Spindle speed range and series

r/min

18 kinds,5.4-720

Spindle feed range and series

mm/r

64 species, 0.06-24.3

Range 1:1

mm/r

0,1-1,52

Range 16:1

mm/r

1,6-24,3

Micro feed range with replaceable gear

mm/r

0.06-0.912

The ratio of horizontal feed to longitudinal

1/2

Fast travel speed of the machine seat

mm/min

4000

Machine screw pitch

mm

12Metric1/2"inch

Range and type of metric thread

mm

50 kinds, 1-240

14 more types of non-standardthreads

Range and type of inch thread

26 species, 14-1tpi

Range and type of modular thread

mm

53 species, 0.5-120

Range and type of pitch carving

24 kinds, 28-1D.P.

Maximum lateral travel of the lower tool post

mm

500

Maximum stroke of the upper tool post

mm

200

moverear quills money

mm

250

Tail quill cone money

Moos No. 5

Machine Guide Width and Hardness of Hardening

mm

600rc52

Main engine

kw

11or 15

fast engine

kw

1.1

Cooling pump motor power

w

90

Wwidth*machine height/width*packing height

mm

CW61100Q;

1550*1630/1820*1800/1550*1790

CW61110

1560*1900/1800*2520

Machine length and packing box length

Poppy. Working length

1500

mm

3700/4150

3000

mm

5250/5650

4000

mm

6250/6650

5000

mm

7250/8050

Net weightmachine tool

Poppy. Workpiece length

1500

mm

4900/6000

3000

mm

5500/6900

4000

mm

6100/8000

5000

mm

6900/9000

Machine width

mm

600

Poppy. load capacity

Kg

2000
