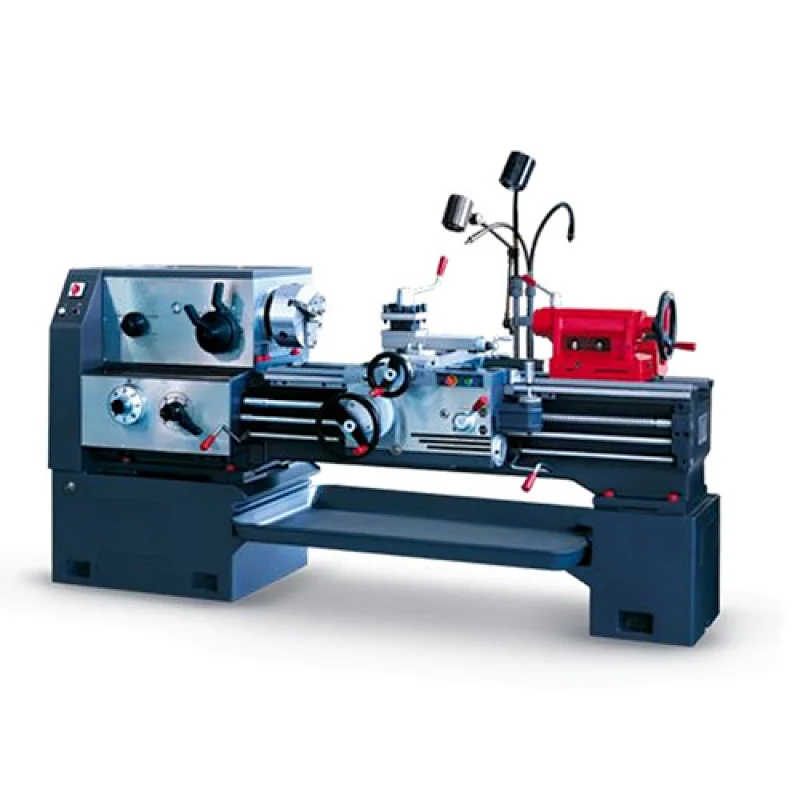

Name | Unit | CA614DB/A | CA615DB/A |
Processing diameter over bed, mm | mm | Ф 400(16”) | Ф 500(20”) |
Machining diameter over the caliper, mm | mm | Ф210(8 1/4”) | Ф300(12”) |
Distance between centers | mm | 750/1000/1500/2000/3000 (29”/40”/60”/118”) | 750/1000/1500/2000/3000 (29”/40”/60”/118”) |
Width, bed hardness | mm | 400,rc52 | 400,rc52 |
Caliper section | mm | 25*25 | 25*25 |
Spindle speed range（clockwise） | r/min | 10-1400(24kinds) | 10-1400(24kinds) |
Spindle speed range (counterclockwise) | r/min | 14-1580 (12 kinds) | 14-1580 (12 kinds) |
Spindle bore diameter | mm | Ф80 (3 9/64”) | Ф80 (3 9/64”) |
Spindle end | mm | A28 | A28 |
Spindle nose taper | | Ф90(1:20) | Ф90(1:20) |
Feed quantity | | 64kinds (for each) | 64kinds (for each) |
Longitudinal feed per spindle revolution（standard feed） | mm/r | 0.11-1.6 | 0.11-1.6 |
Longitudinal feed per spindle revolution（low feed） | mm/r | 0.028-0.11 | 0.028-0.11 |
Longitudinal feed per spindle revolution（big pitch） | mm/r | 1.76-6.4 | 1.76-6.4 |
Cross feed per spindle revolution（standard feed） | mm/r | 0.05-0.8 | 0.05-0.8 |
Cross feed per spindle revolution（low feed） | mm/r | 0.014-0.05 | 0.014-0.05 |
Cross feed per spindle revolution（big pitch） | mm/r | 0.88-3.2 | 0.88-3.2 |
Metric thread range | mm | 1-192(44 kinds) | 1-192(44 kinds) |
Inch thread range | tpi | 2001-2-24(28 kinds) | 2001-2-24(28 kinds) |
Modular thread range | mm | 0.24-48(module)(39 kinds) | 0.24-48(module)(39 kinds) |
Pitch thread range | D.P. | 1/2-96(38 kinds) | /2-96(38 kinds) |
Speed prelocationItop slidelongitudinal | M/min | 4 | 4 |
WITHspeed prelocationIcross caliper, | M/min | 2 | 2 |
Angle of rotationrotating diskcaliperA | degree | ±90 | ±90 |
Moving the cross caliper | mm | 320(12 1/2”) | 320(12 1/2”) |
Movement of the small caliper | mm | 140 (5 1/2”) | 140 (5 1/2”) |
Spindle travel at the end of the bed | mm | 150(5 29/32”) | 150(5 29/32”) |
Spindle diameter at the end of the bed | mm | Ф75 (2 61/64”) | Ф75 (2 61/64”) |
Spindle taper at the end of the bed | | | |
Spindle bore taperat the end of the bed | | Morse Taper No. 5 | Morse Taper No. 5 |
Gmain engine | KW | 7,5(10hp) | 7.5 (10hp) |
750mm net/gross | kg | 1990/2680 | 2060/2410 |
1000mm net/gross | kg | 2070/2760 | 2140/2830 |
1500mm net/gross | kg | 2220/3020 | 2290/3050 |
2000mm net/gross | kg | 2570/3420 | 2640/3490 |
750mm Dimensional Dimension/ Packing Dimension | mm | 2418*1000*1270 2600*1520*2010 | 2418*1037*1315 2600*1520*2010 |
1000mm Dimensional Dimension / Packing Dimension | mm | 2668*1000*1270 1850*1520*2010 | 2668*1037*1315 2850*1520*2010 |
1500mm Dimensional Dimension / Packing Dimension | mm | 3168*1000*1270 3350*1520*2010 | 3168*1037*1315 3350*1520*2010 |
2000mm Dimensional Dimension / Packing Dimension | mm | 3668*1000*1270 3850*1520*2010 | 3668*1037*1315 3850*1520*2010 |
