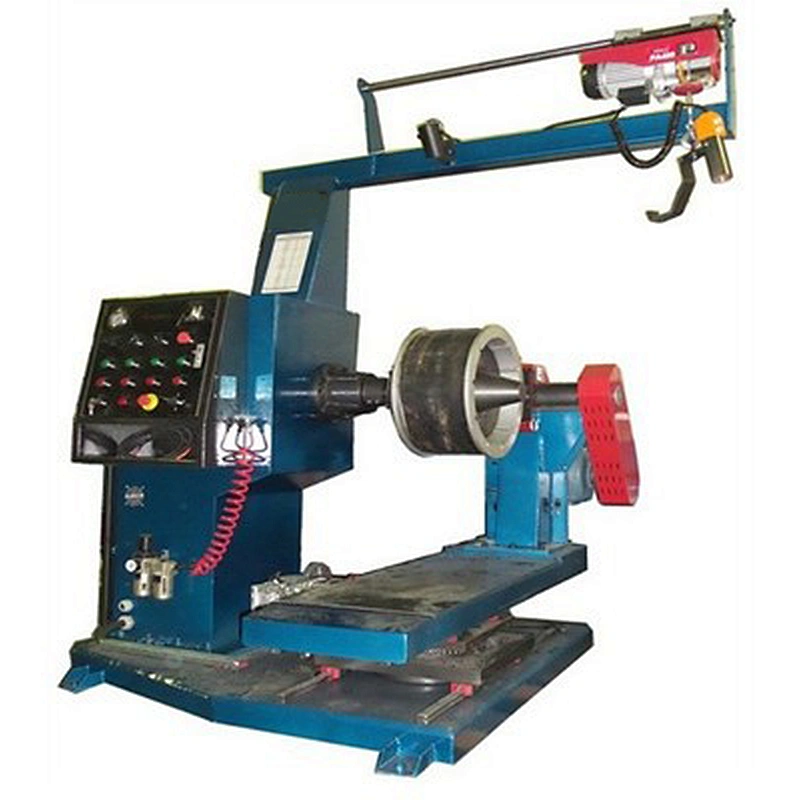

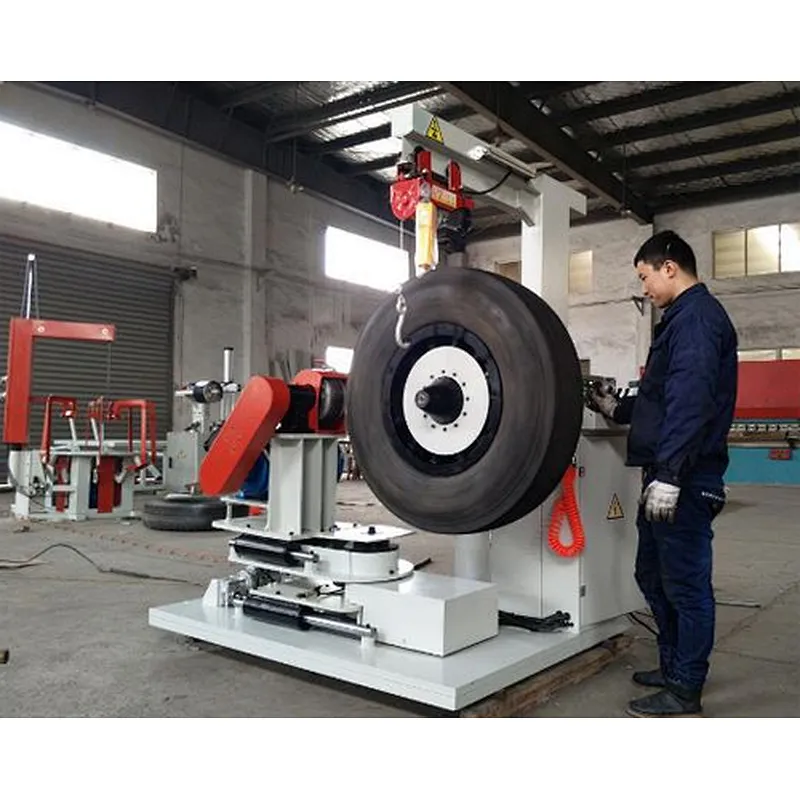

Inflatable buffing machine for large tires
Inflatable buffing machine for large tires
Inflatable buffing machine for large tires
Inflatable buffing machine for large tires
Inflatable buffing machine for large tires
Inflatable buffing machine for large tires
Inflatable buffing machine for large tires

Inflatable buffing machine for large tires

Model NO.
jinbin2700
Quantity:

Inflatable buffing machine for large tires

Standard Features:

A grinder is a device for grinding the surface of a tire. After grinding, the surface is thin and smooth, which can meet the curvature requirements similar to the surface of a new tire.

Radius adjustment range: 450-800mm

Function of automatic inflation of the expansion ring, effective centering

Automatic tire lifting function, improve work efficiency, equipped with a vacuum cleaner, two rims!

Additional feature:

Manual shoulder grinding

Double curve shoulder grinding function

Side sanding function

Carcass circumference measurement function, tread rubber residual thickness measurement function

Technical specifications

Dimension: 1800mm * 1700mm * 1500mm

Weight: 2000 kg,

applicable standard rim diameter: 15”-22.5”

Applicable standard tire outer diameter: 500-1200mm,

working pressure: 0.8 MPa

Voltage: 380VAC / 50Hz

Power: 12 kW

Average polishing time: 5 min
