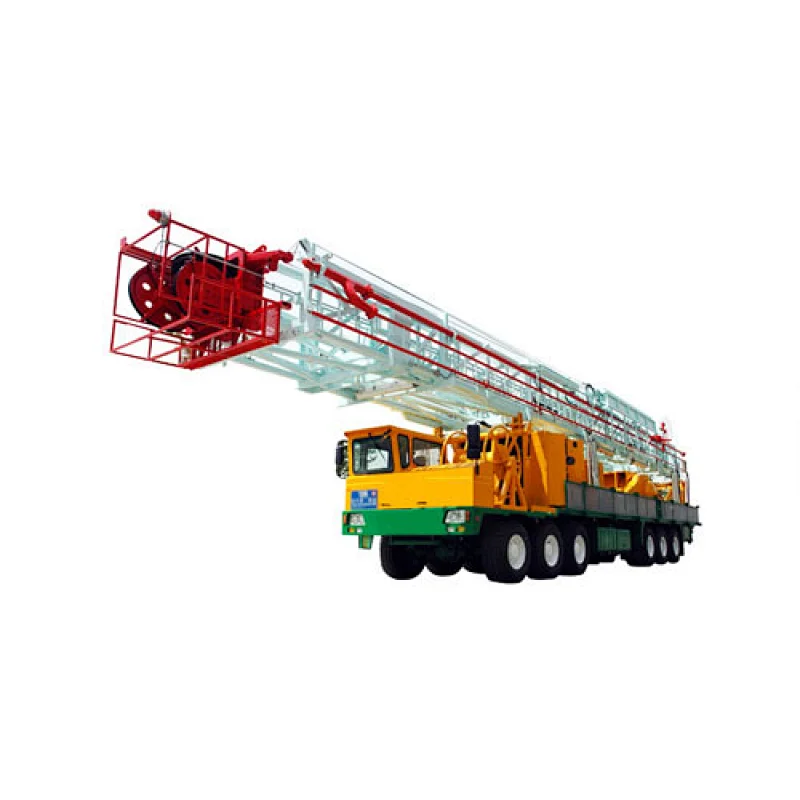

Mobile drilling rig model ZJ20/1580Z

Model

ZJ15/1350Z

Maximum hook load (kN)

1580(1600)

Nominal drilling depth（114mm）m

1200～2000

Winch power (kW)

470

rigging

8

Rope diameter (mm)

29

Tower height (m)

35，36

Maximum hook lifting speed (m/s)

1.5

Rotor Base Height(m)

4.5, 5, 6

Rotor bore diameter(mm)

444.5 520.7

Main brake

Band and disc brake

Auxiliary brake

224WCB

Chassis model

XD60/12×8

Minimum distance to ground (mm)

311

Minimum turning circle diameter (m)

36

Emission standard

V (international)
